Specifying the wrong voltage for industrial backup power guarantees equipment failure, expensive step-down transformer retrofits, or severe capacity derating. Facility managers and procurement engineers must align generator output exactly with existing switchgear, motor loads, and distribution panels. A mismatch in phase configuration or voltage levels renders a high-capital asset completely unusable during an outage. Selecting the correct voltage requires a rigorous audit of facility loads. You must understand reconnectable versus dedicated alternators, differentiate between Wye and Delta configurations, and evaluate OEM capabilities before finalizing procurement. Defining the baseline electrical standards required to match facility switchgear without relying on inefficient external transformers ensures seamless power restoration. We see facilities make this mistake often. They order a unit based on kW alone, ignoring the specific phase requirements of their chiller plants or manufacturing lines. This guide breaks down exactly how to match your alternator output to your site infrastructure.
Standard Output Profiles: In North America, commercial and industrial three-phase systems typically require either 120/208V or 277/480V, while international 50Hz applications standardize on 230/400V.
Wye vs. Delta Configurations: Understanding the difference between a standard Wye (Star) setup and a 240V Delta (often with a "high leg") is critical for safely powering mixed 120V/240V loads.
The Derating Penalty: Attempting to power heavy single-phase loads from a three-phase genset can result in up to a 50% capacity reduction and severe phase imbalance.
Alternator Flexibility: 12-lead reconnectable alternators offer future-proofing for facilities with evolving electrical needs, whereas dedicated alternators provide maximum reliability for static, mission-critical loads.
Holistic Procurement: Final selection must account for brand-specific alternator performance (e.g., Cummins, Perkins), ATS compatibility, and site-specific constraints like acoustic limits.

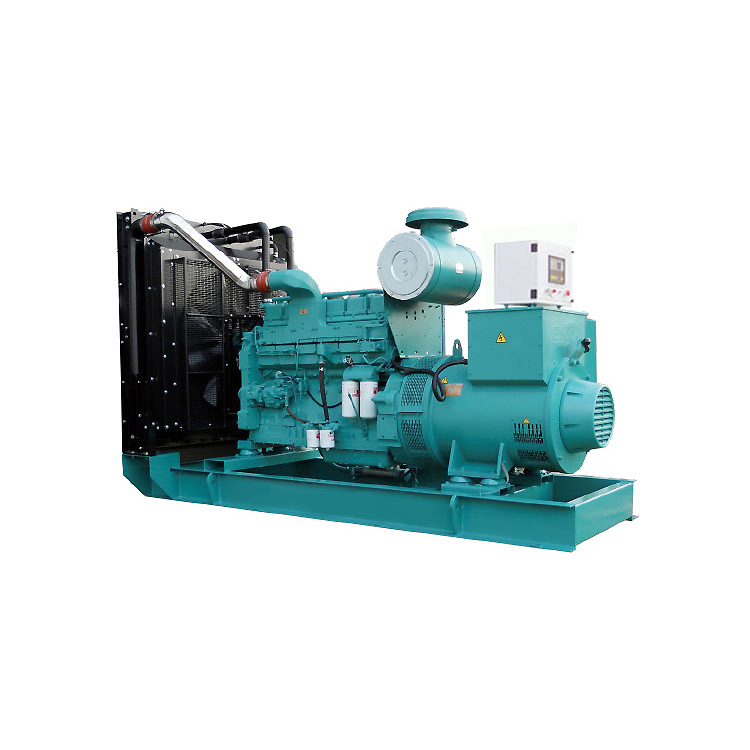

Matching your facility electrical service entrance to the correct generator output is the foundational step in power system design. An incorrectly specified three phase diesel generator forces the installation of heavy, heat-generating transformers. Transformers introduce unnecessary failure points and efficiency losses. You want the power coming off the alternator breaker to flow directly into your transfer switch without any intermediate voltage manipulation.
In North America, the 60Hz grid dictates two primary commercial and industrial voltage standards. The 120/208V three-phase configuration dominates commercial buildings, retail spaces, and light manufacturing facilities. This setup provides 208V across any two hot legs for moderate motor loads. It also delivers a standard 120V from any single hot leg to the neutral wire. It perfectly accommodates mixed environments running HVAC rooftop units alongside standard wall outlets and office electronics. You can power a 3-phase elevator motor and a standard coffee maker from the same distribution panel.
Heavy industrial facilities, data centers, and large manufacturing plants require 277/480V systems. Operating at 480V drastically reduces the amperage required to deliver the same amount of power compared to a 208V system. Lower amperage means electrical contractors can install smaller gauge copper wiring. This saves massive amounts of money on long cable runs. Large industrial motors start and run much more efficiently at 480V. They experience less heat buildup, which extends equipment lifespan. The 277V leg-to-neutral connection frequently powers high-bay industrial lighting circuits.
System Voltage | Total kW Load | Approximate Amperage | Required Wire Size (Per Phase) |
|---|---|---|---|
120/208V 3-Phase | 500 kW | 1,734 Amps | Multiple parallel runs of 500 MCM copper |
277/480V 3-Phase | 500 kW | 752 Amps | Fewer parallel runs of 500 MCM copper |
The internal winding connections of the alternator dictate how voltage is delivered to the distribution panel. A 120/208V Wye configuration features three windings joined at a central neutral point. This provides a perfectly balanced 120V from any of the three phases (L1, L2, L3) to the neutral. Wye is the most common and safest configuration for modern mixed-load facilities. The math is simple: 120V multiplied by the square root of 3 (1.732) equals 208V.
Conversely, 240V 3-Phase Delta configurations wire the coils in a triangle. While excellent for dedicated heavy motor loads, a specific variation known as the high-leg Delta presents severe risks. In a high-leg Delta system, the center of one winding is grounded to create a neutral. L1 and L2 measure 120V to neutral. However, L3 measures 208V to neutral. We see this destroy equipment constantly in the field. A technician assumes all phases are 120V to neutral, wires a standard 120V control panel to L3, and instantly fries the circuit boards upon startup.
Voltage Configuration | Phase to Phase Voltage | Phase to Neutral Voltage | Primary Application |
|---|---|---|---|
120/208V Wye | 208V | 120V | Retail, offices, light commercial, mixed loads |
277/480V Wye | 480V | 277V | Heavy manufacturing, data centers, large chillers |
240V High-Leg Delta | 240V | 120V (L1/L2), 208V (L3) | Legacy industrial, dedicated motor loads |
230/400V Wye (50Hz) | 400V | 230V | International standards, imported machinery |
Massive industrial complexes, mining operations, and utility paralleling stations frequently operate beyond standard low-voltage limits. Generators in these environments output 600V or step up into medium-voltage territory at 4160V, 12kV, or 13.8kV. Transmitting power at medium voltage across sprawling campuses minimizes line losses. Pushing 2 Megawatts of power at 480V requires copper busbars the size of tree trunks. Pushing that same 2 Megawatts at 4160V requires standard heavy-duty cabling. These systems require specialized switchgear, highly trained medium-voltage technicians, and rigorous safety protocols. Arc flash hazards increase exponentially at these voltage levels.
Facilities operating outside North America, or those utilizing imported European or Asian manufacturing equipment, must adhere to 50Hz standards. The global standard is 230/400V. The generator delivers 400V across the phases for heavy machinery and 230V from phase to neutral for standard appliances and controls. Attempting to run 50Hz equipment on a 60Hz generator alters motor speeds by 20%. A pump designed to spin at 1500 RPM will spin at 1800 RPM. This leads to rapid mechanical failure, cavitation in fluid systems, and severe overheating.
Mapping generator voltage and phase capabilities directly to operational outcomes determines whether your critical loads survive an outage. An accurate load study dictates the exact alternator specifications required. You cannot guess these numbers. You must measure them at the main distribution panel during peak operational hours.
Electric motors draw massive amounts of power upon startup. We call this Locked Rotor Amperage (LRA) or inrush current. This initial surge can be up to six times the motor standard Full Load Amperage (FLA). When a generator attempts to start a heavy HVAC chiller or industrial pump, the sudden demand causes the alternator voltage to drop. This is known as voltage dip.
Most industrial equipment tolerates a transient voltage dip of 15% to 20%. If the voltage drops further, magnetic contactors chatter, variable frequency drives (VFDs) trip offline, and motors stall. A stalled motor acts like a dead short, rapidly overheating its windings until it catches fire or trips a breaker. Selecting a 480V system over a 208V system for heavy motor loads reduces the total amperage draw. This allows the generator Automatic Voltage Regulator (AVR) to recover faster and maintain system stability during aggressive load steps.
A comprehensive facility audit must quantify the ratio of three-phase machinery to standard single-phase loads. You must distribute single-phase loads evenly across the three legs of the generator. If L1 carries 100 amps of lighting and computers, while L2 and L3 carry only 20 amps, the resulting phase imbalance creates harmonic distortion. This distortion heats up the alternator windings, degrades voltage regulation, and triggers the generator protective breakers. Panel schedules must be reorganized to ensure all three phases draw roughly the same amperage. We recommend keeping phase imbalance below 10% for optimal alternator health.
Surplus commercial generators frequently find their way into whole-home or agricultural backup scenarios. Users often attempt to repurpose a three-phase unit for a property wired strictly for 240V single-phase power. This introduces complex wiring challenges. You must verify the alternator internal schematic to determine if the copper windings can be safely reconnected in a zig-zag pattern to provide true single-phase output. Without proper reconfiguration, feeding a residential panel from a three-phase source requires abandoning one phase entirely. This leads to severe operational limits and potential stator damage.
A common engineering mistake involves pulling 240V single-phase power directly from two legs of a standard three-phase alternator without altering the internal connections. Doing so strands one-third of the alternator copper windings. Because the generator kW rating is based on all three phases sharing the load, utilizing only two phases immediately derates the usable capacity by 33%.
The physical imbalance causes localized heating within the stator. To prevent melting the insulation on the active coils, engineers must apply a secondary safety derate. Running single-phase loads off a non-reconnected three-phase unit reduces the generator safe, continuous capacity by up to 50%. A 100kW three-phase generator may only safely provide 50kW of single-phase power. You pay for a massive engine but can only use half its horsepower.
Original 3-Phase Rating | Phase Utilization | Resulting Single-Phase Capacity | Risk Factor |
|---|---|---|---|
100 kW (208V 3-Phase) | Using L1 and L2 only | ~50 kW to 66 kW | High stator heating, severe imbalance |
200 kW (480V 3-Phase) | Using L1 and L2 only | ~100 kW to 133 kW | High stator heating, AVR instability |
100 kW (Reconnected Zig-Zag) | Proper 12-lead rewire | ~66 kW | Safe, balanced, but permanently derated |
Comparing hardware configurations during the specification process dictates the long-term flexibility of your backup power system. You must decide if you want a machine that adapts to future facility upgrades or a machine built specifically for one static application.
A 12-lead reconnectable alternator features 12 individual wire leads originating from the stator coils. These leads terminate in the main connection box.
Pros: This design offers maximum versatility. A qualified technician can rewire the copper links in the field. The unit can operate in a 480V series-star configuration for a manufacturing plant. Years later, it can be reconnected into a 208V parallel-star configuration if relocated to a commercial office building. This future-proofs the asset and increases resale value.
Cons: The terminal box is crowded and complex. Reconnecting the leads requires studying the OEM wiring diagram meticulously. Human error during reconnection will result in catastrophic short circuits. If a technician crosses a phase or fails to torque the copper busbars correctly, the windings will melt upon startup.
Dedicated alternators are wound at the factory for one specific voltage. They typically feature only 4 leads (three phases and a neutral) entering the terminal box.
Pros: These units feature optimized copper windings for their specific voltage. This often results in slightly better efficiency and motor-starting performance. The simplified terminal box drastically lowers the risk of configuration faults during installation. They are ideal for permanent, mission-critical installations like hospitals or data centers where the infrastructure will never change.
Cons: They offer zero flexibility. If the facility undergoes a major electrical infrastructure upgrade from 208V to 480V, the dedicated generator becomes obsolete. You cannot rewire it. You must replace the entire generator or install a massive step-up transformer.
Assessing how top-tier engine manufacturers pair with alternator ends determines the system ability to deliver stable voltage under transient loads. The engine provides the raw horsepower. The alternator dictates the quality and stability of the electrical wave.
When specifying a Cummins diesel generator, engineers rely on the integration of their proprietary Stamford alternators. Stamford ends are highly regarded for their tight voltage regulation and robust fault-clearing capabilities. In heavy industrial settings, if a short circuit occurs downstream, the alternator must sustain enough short-circuit current to trip the specific downstream breaker without collapsing the voltage to the rest of the facility. Cummins systems equipped with Permanent Magnet Generators (PMG) provide isolated excitation power. This ensures the AVR maintains voltage control even during massive motor starts or dead-short fault conditions.
Integrating a Perkins diesel generator typically involves pairing the engine with premium third-party alternators like Leroy-Somer or Mecc Alte. Perkins engines are recognized for exceptional prime power reliability and fuel efficiency. When matched with a high-efficiency alternator, these systems maintain precise 60Hz or 50Hz frequency control across varied voltage outputs. This makes them ideal for continuous-duty applications where fuel consumption directly impacts operational margins. The mechanical governors on legacy Perkins units and the electronic ECMs on modern units respond rapidly to block loads, keeping voltage dips within acceptable limits.
The generator output voltage must exactly match the Automatic Transfer Switch (ATS) and the utility feed. The ATS monitors utility voltage. When it detects a drop, it signals the generator to start. Once the generator reaches the correct voltage and frequency, the ATS transfers the load. If a 480V generator is paired with a 208V ATS, the contactors will violently fail upon transfer. Closed-transition ATS units require exact phase synchronization between the utility and the generator before transferring. This demands highly accurate AVR and engine governor controls to match the sine waves perfectly.
Identifying deployment hurdles early mitigates risks that impact the overall value, safety, and compliance of the installation. Field conditions rarely match the pristine environment of an engineering schematic.
Unbalanced loads across the three phases (L1, L2, L3) pose a severe threat to alternator health. When phases are unbalanced, the excess current returns via the neutral wire. Most standard alternators are not designed to handle massive neutral currents. This imbalance causes harmonic distortion. Harmonic distortion corrupts the sine wave and causes sensitive IT equipment to malfunction. Prolonged imbalance leads to localized stator heating. This eventually breaks down the epoxy insulation and causes a dead short inside the alternator housing.
Mobile or rental applications demand specific distribution strategies. Utilizing a diesel generator for construction sites or outdoor events requires routing 5-wire setups (three hot legs, one neutral, one ground) to heavy-duty 200A distribution boxes. We call these spider boxes in the field. These boxes step down the three-phase power into localized 120V receptacles safely. Technicians must ensure the main output breaker matches the ampacity of the temporary cabling to prevent electrical fires. Running 400 amps through a cable rated for 200 amps will melt the jacket in minutes.
When a three-phase AC generator exhibits voltage drops or erratic output, technicians follow strict fault-finding procedures.
AVR Failure: The Automatic Voltage Regulator is the most common failure point. If the AVR loses its sensing input or its internal components fry, the generator will either output zero voltage or spike to dangerous levels. Replacing the AVR is usually a 15-minute job.
Loss of Excitation: If the generator sits idle for months, the exciter field may lose its residual magnetism. Technicians must flash the field using a 12V battery. You tap the battery leads to the F1 and F2 terminals for two seconds while the engine runs. This restores magnetism and allows the alternator to build voltage.
Rotating Diode Failure: Faulty diodes on the exciter rotor cause the alternator to output low voltage under load. Technicians must isolate and test each diode with a multimeter. A blown diode acts like a blocked pipe, preventing DC current from reaching the main rotor.
Voltage requirements dictate the required kW capacity. Capacity dictates engine size, footprint, and acoustic output. Urban environments and hospitals enforce strict noise ordinances. Specifying a silent diesel generator requires selecting the appropriate sound attenuation enclosure. Level 2 enclosures utilize thick acoustic foam and baffled air intakes to reduce noise to around 70 dB(A) at 7 meters. Level 3 enclosures add custom exhaust silencers and larger footprints. These are necessary for large 480V deployments located near residential property lines where noise pollution carries heavy fines.
Procuring a surplus 480V generator for a 208V facility requires installing a step-down transformer. While functional, this introduces significant trade-offs. Transformers operate at roughly 95% to 98% efficiency. This means 2% to 5% of the generator fuel is wasted generating heat inside the transformer. The transformer also adds physical bulk, requires dedicated cooling, and increases the total capital expenditure. Buying a natively matched generator is always the superior engineering choice. Avoid transformers in backup power circuits unless absolutely necessary.
Audit your main distribution panel to verify the exact phase and voltage configuration before requesting equipment quotes.
Calculate the locked rotor amperage of your largest motor to size the alternator for acceptable voltage dip.
Specify a 12-lead reconnectable alternator if you plan to relocate the unit or upgrade facility power in the future.
Reorganize your facility panel schedules to ensure single-phase loads are balanced evenly across all three generator legs.
Require certified load bank testing data from the manufacturer at your specific voltage and frequency prior to shipment.
A: Yes, it can power single-phase equipment via a properly wired distribution panel that balances the 120V loads across all three phases. However, pulling 240V directly from just two legs of the alternator without reconfiguring the internal windings causes severe phase imbalance and derates the generator usable capacity by up to 50%.
A: A Wye configuration joins three windings at a neutral point, providing balanced voltage to neutral across all phases. This makes it ideal for mixed commercial loads. A Delta configuration wires the coils in a triangle, typically used for dedicated heavy 3-phase motors. Delta systems can feature a dangerous high leg that will destroy standard 120V equipment if tapped incorrectly.
A: If the voltage is mismatched, the Automatic Transfer Switch cannot safely transition the load. Connecting mismatched voltage directly will instantly destroy sensitive electronics, melt motor windings, and pose a severe fire hazard. You would be forced to install an expensive, heat-generating step-up or step-down transformer to make the system functional.
A: Check the generator data tag or the alternator terminal box. A reconnectable alternator typically features 12 individual wire leads originating from the stator. The OEM manual will provide a wiring diagram showing how to configure the copper busbars for series-star (480V), parallel-star (208V), or zig-zag (single-phase) outputs.
A: Operating at 480V pushes the same amount of total power at a significantly lower amperage than 208V. Lower amperage allows engineers to use smaller, less expensive copper wiring for long cable runs. It also allows large industrial motors to start and run more efficiently with less heat buildup and less voltage dip.
A: Voltage drops under load are typically caused by a failing Automatic Voltage Regulator (AVR), blown rotating diodes on the exciter, or an engine governor that cannot maintain RPM. If the load inrush current exceeds the alternator transient capacity, the magnetic field will temporarily collapse, causing a severe voltage dip.
