Power loss in critical facilities directly threatens operational viability. For data centers, healthcare campuses, and continuous manufacturing plants, power continuity represents a strict compliance mandate. When the grid fails, operations must transition seamlessly to emergency power. A single dropped cycle can corrupt databases, ruin pharmaceutical batches, or compromise life safety systems. Achieving this seamless transition depends entirely on accurately sizing your power generation equipment. Improper sizing introduces severe operational risks. Undersizing a unit leads to catastrophic failure during load steps. When heavy motors start, they draw massive inrush currents. If the generator cannot handle this transient demand, you experience severe voltage and frequency dips, leading to breaker trips and complete system stalling. Conversely, oversizing results in wasted capital expenditure and introduces mechanical degradation like wet stacking. We will walk through the exact technical framework for calculating power requirements and evaluating engine options.
Accurate Load Profiling is Mandatory: Sizing requires calculating both steady-state running wattage (kW) and the transient starting wattage (kVA/skVA) of motor loads to prevent system stalling.
Phase and Voltage Dictate Capacity: Calculations must strictly align with the facility’s electrical infrastructure, differentiating between single-phase and three-phase formulas.
Safety Margins Prevent Overloading: A standard 10–20% capacity buffer is required to handle unexpected load variations and future facility expansion without pushing the generator past its continuous rating.
Engine Selection Impacts TCO: Choosing the right tier of equipment (e.g., specific engine blocks, enclosures) dictates long-term maintenance costs, noise compliance, and fuel efficiency.
Not every circuit in a facility requires backup power. The first step in sizing is categorizing loads into distinct tiers. Tier 1 critical loads include life safety systems, emergency egress lighting, server racks, fire pumps, and HVAC systems dedicated to cleanrooms or operating theaters. These systems must receive power within seconds of a grid failure. Tier 2 loads, often called sheddable loads, include general office lighting, non-essential administrative power, breakroom appliances, and perimeter heating.
Isolating critical loads significantly reduces the total required generator size. Facility managers achieve this isolation by routing Tier 1 loads through dedicated emergency distribution panels controlled by Automatic Transfer Switches (ATS). When utility power drops, the ATS signals the generator to start and transfers only the critical panel to generator power. By physically separating essential and non-essential circuits, you avoid sizing the generator to support the entire building's maximum potential draw. This optimizes the initial equipment size and ongoing fuel consumption.
Load Category | Equipment Examples | Backup Priority | ATS Routing Strategy |
|---|---|---|---|
Tier 1 (Life Safety & Critical) | Fire pumps, server racks, emergency lighting, medical equipment | Immediate (0-10 seconds) | Dedicated emergency panel, primary ATS |
Tier 2 (Essential Operations) | Main HVAC, security systems, primary workstations, refrigeration | High (10-30 seconds) | Secondary ATS with programmed time delay |
Tier 3 (Sheddable/Non-Essential) | Perimeter heating, breakroom appliances, decorative lighting | Low (Manual or None) | Dropped during utility failure |
The mechanical reality of undersizing is immediate and destructive. When a generator is too small for the connected load, the alternator overheats as it struggles to push enough current. The stator winding insulation breaks down under extreme thermal stress. More dangerously, undersizing causes severe frequency drops. Modern electronic equipment relies on a stable 60 Hz (or 50 Hz) sine wave. If a heavy motor attempts to start and pulls the engine RPM down, the frequency sags. This sag causes UPS systems to reject the generator power, transfer switches to oscillate, and heavy motors to stall. You effectively leave the facility in the dark despite the engine running.
Oversizing carries equally damaging mechanical consequences. Diesel engines are designed to work hard under high cylinder pressures and temperatures. If you install a massive backup diesel generator but only load it to 15% of its capacity, the engine never reaches its optimal operating temperature. The piston rings fail to expand and seal properly against the cylinder walls. This allows unburned fuel and lubricating oil to slip past the rings and enter the exhaust manifold. This condition, known as wet stacking, manifests as a thick, black sludge dripping from the exhaust stack. Over time, wet stacking causes severe carbon buildup on valves, degrades the turbocharger, and significantly reduces the engine's operational lifespan.
Accurate sizing begins with a comprehensive inventory of all critical equipment connected to the emergency panel. You must audit the data plates on every device to determine two distinct values. Running wattage (kW) represents the continuous power required to keep the equipment operating normally. Starting wattage (kVA) represents the brief, massive surge of power required to overcome inertia and start a device.
You must differentiate between resistive loads and inductive loads. Resistive loads include incandescent lighting, baseboard heaters, and simple electronics. These devices have a 1:1 starting-to-running ratio. If a heater draws 2,000 watts to run, it requires exactly 2,000 watts to turn on. Inductive loads include anything with an electric motor. HVAC compressors, elevator drives, water pumps, and industrial fans fall into this category. Overcoming the stationary inertia of a rotor requires an immense magnetic field. Consequently, inductive loads typically require three to six times their running wattage to start.
Equipment Type | Load Classification | Starting Multiplier (Approximate) | Example Running kW | Example Starting kVA |
|---|---|---|---|---|
Electric Baseboard Heater | Resistive | 1.0x | 5.0 kW | 5.0 kVA |
Server Rack (UPS backed) | Resistive / Electronic | 1.0x | 8.0 kW | 8.0 kVA |
Submersible Water Pump | Inductive | 3.0x - 4.0x | 4.0 kW | 12.0 - 16.0 kVA |
Commercial Chiller Compressor | Inductive | 5.0x - 6.0x | 20.0 kW | 100.0 - 120.0 kVA |
To calculate the total required capacity, engineers use the Peak Demand Calculation Rule. You do not simply add up all the starting wattages. Doing so results in a massively oversized unit. Instead, you sum the running wattages of all connected devices. Then, you identify the single largest motor in your facility. You add the starting wattage of only that single largest motor to your running total. This methodology assumes a sequenced starting protocol. Your facility's control systems must be programmed so that heavy motors start one at a time, rather than simultaneously.
Wattage calculations must strictly align with the facility's existing electrical infrastructure. You cannot finalize a size without knowing the phase and voltage of the electrical service. For smaller commercial spaces utilizing single-phase power, the calculation framework is straightforward. You multiply Amps by Voltage to equal Watts (A × V = W). You then divide by 1,000 to find the kilowatt (kW) requirement.
Industrial facilities and large commercial buildings utilize three-phase power. This configuration delivers power more efficiently across three alternating currents. The framework for three-phase calculations requires accounting for the phase configuration and the power factor. The formula is: Amps × Voltage × 1.732 × Power Factor = Watts. The 1.732 represents the square root of three, a constant used in three-phase math. The power factor accounts for the difference between actual power (kW) and apparent power (kVA) in alternating current circuits. For standard three-phase generators, engineers typically use a power factor of 0.8.
Before conducting a granular, device-by-device load profile, engineers often use the Main Breaker Method to establish a conservative baseline. By evaluating the total amperage capacity of the facility's main electrical panel or the specific emergency sub-panel, you calculate the absolute maximum power the facility could theoretically draw before tripping the main breaker. While this method often yields a number higher than your actual continuous load, it provides a hard ceiling for your sizing calculations. Ensure the generator's output voltage perfectly matches the facility's existing electrical service. Matching voltages (e.g., 120/240V single-phase, 277/480V three-phase) eliminates the need for expensive step-down transformers.
Once you calculate the absolute peak load, engineering standards dictate adding a 10% to 20% safety margin to the final figure. Sizing a unit to run constantly at 100% of its maximum rating leaves zero room for error. If a motor degrades and draws slightly more current, or if a severe weather event causes HVAC units to work harder than normal, a generator running at absolute maximum capacity will trip its internal breakers to protect the alternator.
This safety buffer also accounts for equipment degradation over time. As alternators age and engine components wear, they lose a small percentage of their peak efficiency. Furthermore, facilities rarely remain static. The 20% margin provides built-in headroom for minor future facility expansions. You can add a new server rack, upgrade an air conditioning unit, or install additional security lighting without requiring a complete replacement of the emergency power system.
A generator's nameplate rating is calculated under standard laboratory conditions. Real-world installation environments physically alter engine performance. Altitude and ambient temperature directly impact the oxygen density and cooling capacity of a diesel engine. Internal combustion relies on a specific ratio of fuel to oxygen. At high altitudes, the air is thinner. Less oxygen enters the cylinder per intake stroke. This reduces the amount of fuel the engine can effectively burn, lowering the total horsepower output.
Similarly, high ambient temperatures reduce air density and strain the engine's cooling system. If the radiator cannot effectively dissipate heat into the surrounding hot air, the engine management system automatically reduces power output to prevent catastrophic overheating. Engineers must consult the manufacturer's specific derating curves. A standard rule of thumb is a 3% deduction in power for every 1,000 feet above sea level, and a 1% deduction for every 10 degrees Fahrenheit above the standard rating temperature (often 77°F or 25°C). You must adjust your final kW requirement upward to compensate for these environmental losses.
Selecting the engine block that drives the alternator is a foundational engineering decision. The market relies heavily on proven industrial engines, each offering specific operational profiles. A Cummins diesel generator is widely recognized for its advanced electronic control modules (ECM) and extensive diagnostic software ecosystems. This makes them highly suitable for complex facilities like data centers where integration with building management systems (BMS) and precise load-sharing telemetry are required. Their global parts availability ensures rapid deployment of replacement components during extended grid outages. Field technicians appreciate the standardized fault codes that speed up troubleshooting.
Conversely, a Perkins diesel generator is highly regarded for its robust mechanical design and historical reliability in high-hour, continuous prime power applications. Perkins engines often feature heavy-duty block construction and wet sleeve liners that excel in harsh industrial environments, mining operations, and remote agricultural sites. Rather than relying on subjective claims of one brand being superior, facility managers must evaluate which engine profile aligns with their local maintenance networks. If your local authorized service technicians specialize in one brand's diagnostic software, that brand becomes the logical choice to minimize downtime during emergency repairs.

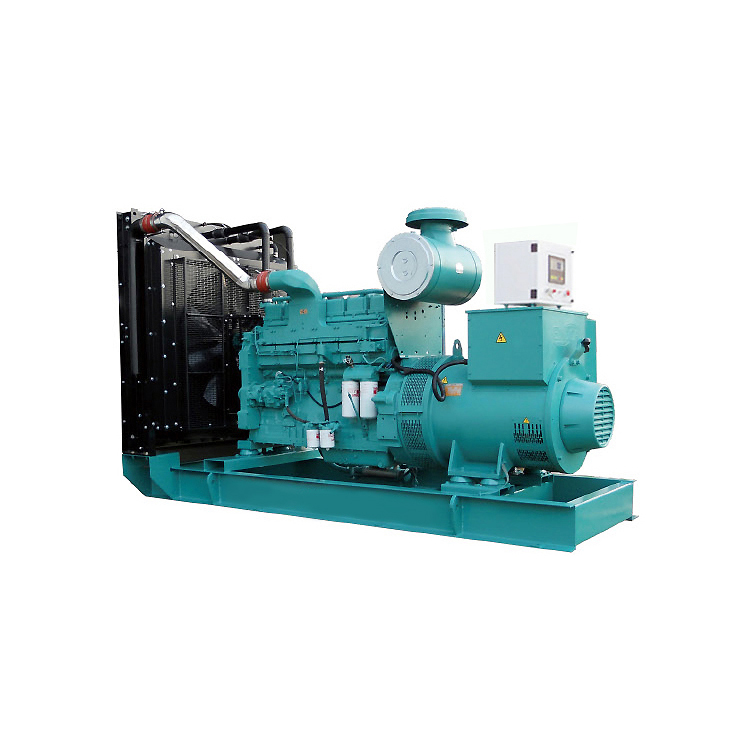

An open skid-mounted generator is suitable for dedicated indoor mechanical rooms, but outdoor installations require weather protection and noise mitigation. A standard weather enclosure protects the equipment from rain and snow but does little to dampen the extreme noise of a running diesel engine. For facilities located in urban environments, hospital campuses, or near residential zoning lines, local ordinances strictly regulate allowable decibel levels.
In these scenarios, specifying a silent diesel generator becomes mandatory. These units utilize sound-attenuated enclosures lined with acoustic foam, specialized exhaust silencers, and baffled air intake routing to trap sound waves. While they successfully reduce noise to compliant levels (often 65-75 dB(A) at 7 meters), they introduce specific trade-offs. Sound-attenuated enclosures have a significantly larger physical footprint. The baffled airflow paths restrict ventilation, meaning the engine cooling system must work harder. This sometimes requires a slightly larger radiator. Facility planners must account for the increased concrete pad size required to support these larger enclosures.
Even with accurate sizing, the sudden application of a massive motor load can cause unacceptable voltage dips. Mitigating this requires strategic load management. Sequence-of-operations programming is the most effective defense. By using multiple automatic transfer switches with staggered time delays, you can step-load the generator. The ATS first transfers life safety lighting. It waits ten seconds for the engine to stabilize, transfers the HVAC fans, waits another ten seconds, and finally transfers the heavy chiller compressors. This prevents the generator from absorbing the entire facility's starting kVA simultaneously.
For facilities with massive, unavoidable motor loads, engineers utilize soft starters or Variable Frequency Drives (VFDs) on the equipment itself. These devices slowly ramp up the voltage to the motor. This drastically reduces the inrush current and smooths out the demand on the generator.
Another advanced strategy is N+1 paralleling for redundancy. Instead of relying on one massive 2-megawatt generator, a facility might install three 1-megawatt units wired in parallel. During a power failure, all three start. As the load stabilizes, the control system can shut one unit down to save fuel, keeping it in reserve. If one engine fails, the others automatically absorb the critical load. Paralleling improves load step management, eliminates the single point of failure, and allows for easier maintenance without taking the entire backup system offline.
As previously defined, wet stacking destroys engine efficiency. The strict mechanical rule is that a diesel engine must operate at a minimum of 30% of its rated capacity to maintain adequate combustion temperatures. If a facility has oversized its generator for future expansion, or if the current emergency load is simply too light, the engine will inevitably suffer from carbon buildup and unburned fuel slobber. Cylinder glazing occurs, permanently damaging the engine's ability to hold compression.
The primary mitigation strategy is mandatory load bank testing. A load bank is an external, heavy-duty resistor that connects directly to the generator. During scheduled maintenance, technicians run the generator against the load bank. This artificially pushes the engine to 80% or 100% of its capacity for several hours. This process generates intense heat, burning off accumulated carbon deposits in the cylinders and exhaust manifold. It evaporates moisture in the oil and ensures the cooling system functions correctly under stress. Annual load bank testing is a regulatory requirement in many healthcare and life safety applications.
Deploying a diesel generator requires strict adherence to environmental and fire safety codes. The EPA enforces Tier 4 Final emissions standards for new diesel engines, drastically limiting particulate matter and nitrogen oxide output. Achieving these standards requires complex exhaust aftertreatment systems. Modern units utilize Selective Catalytic Reduction (SCR), which injects Diesel Exhaust Fluid (DEF) into the exhaust stream to neutralize NOx, alongside Diesel Particulate Filters (DPF) to trap soot. Facility managers must account for the physical space these aftertreatment systems require and establish maintenance protocols for replenishing DEF.
Fuel storage presents another major regulatory hurdle. Local fire codes dictate exactly how much diesel fuel can be stored on-site and where it can be located. Installations often utilize a sub-base fuel tank directly beneath the generator for 24 to 48 hours of runtime. For extended outages, facilities use remote bulk storage tanks that pump fuel into a smaller day tank near the engine. Because diesel fuel degrades over time, accumulating water condensation and microbial growth, critical facilities must install automated fuel polishing systems. These systems continuously circulate the stored fuel through heavy-duty micron filters and water separators. This ensures the engine receives clean, combustible fuel the moment an emergency strikes.
Execute a comprehensive site load study with a certified electrical engineer to capture exact running kW and starting kVA values for all critical equipment.
Audit your facility's physical environment to calculate necessary derating percentages for altitude and maximum summer ambient temperatures.
Evaluate your local zoning laws to determine if a standard weather enclosure is sufficient or if acoustic regulations mandate a sound-attenuated unit.
Establish a relationship with an authorized dealer whose diagnostic software and parts availability align with your chosen engine brand to ensure rapid emergency support.
Implement a strict preventative maintenance schedule that includes annual load bank testing to prevent wet stacking and fuel polishing to maintain fuel integrity.
A: Running watts represent the continuous, steady-state power required to keep equipment operating normally. Starting watts (kVA) represent the brief, massive surge of power needed to overcome inertia and start electric motors. Inductive loads like HVAC compressors or industrial pumps often require three to six times their running wattage to start.
A: Industry engineering standards dictate sizing the generator 10% to 20% above your total calculated peak load. This safety margin ensures voltage stability during sudden load changes, prevents alternator overheating, and allows for minor future facility expansions without requiring a completely new power system.
A: Yes. Operating a diesel engine below 30% of its rated capacity prevents it from reaching optimal operating temperatures. This causes wet stacking, where unburned fuel and oil accumulate in the exhaust system. It leads to severe carbon buildup, cylinder glazing, reduced efficiency, and premature engine failure.
A: Data center sizing depends entirely on server rack density and the massive HVAC cooling loads required to prevent thermal runaway. They rarely rely on a single unit. Instead, data centers utilize multi-megawatt, N+1 paralleled systems to ensure absolute redundancy, precise load-step management, and concurrent maintainability.
A: To calculate kilowatts for a three-phase system, use the following formula: (Amps × Voltage × 1.732 × Power Factor) / 1000 = kW. The 1.732 is the square root of three, and the power factor is typically 0.8 for standard three-phase commercial generators.
A: No. "Silent" is an industry term for sound-attenuated enclosures. These heavy-gauge steel enclosures use acoustic foam and baffled air routing to reduce engine noise to compliant local decibel levels. They typically achieve between 65 and 75 dB(A) at a distance of 7 meters, but they are not absolutely silent.
