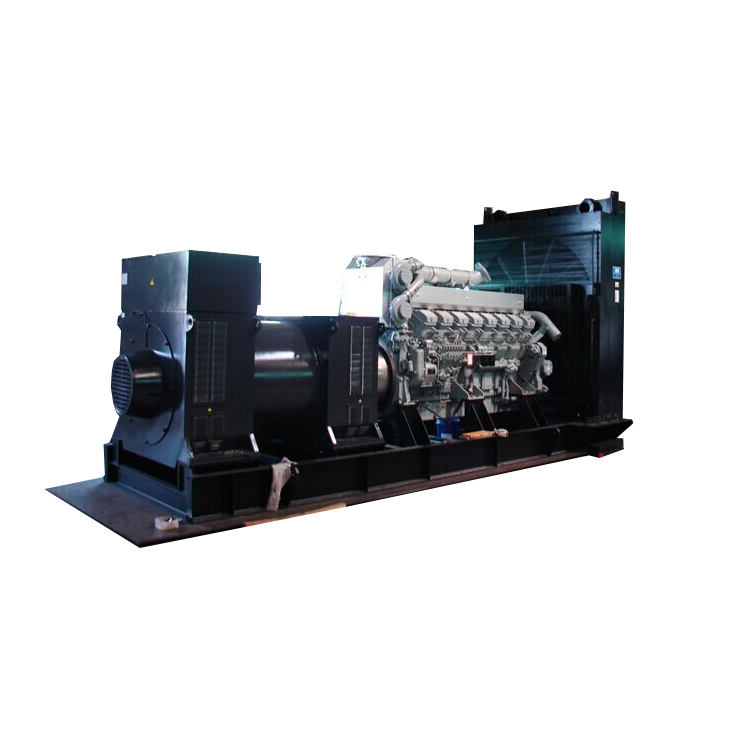

Determining the exact capacity requirements for a diesel generator requires precise engineering calculations. Guessing your power requirements carries severe operational consequences. Facility managers and homeowners frequently confuse running wattage with starting wattage. They also misunderstand the differences between standby, prime, and continuous power ratings. These miscalculations inevitably lead to catastrophic equipment failure during power outages or cause severe, irreversible engine degradation over time.
You cannot simply add up the wattage of your light bulbs and motors to find the right unit. You must evaluate load profiles, account for surge currents, and understand how environmental factors impact engine performance. This guide provides a systematic, engineering-based framework for calculating exact power requirements. We will break down how to evaluate your electrical load profile and select the correct power generation class to ensure long-term reliability and optimal fuel efficiency.
Starting vs. Running Load: Motor-driven equipment requires up to three times its running wattage to start; failing to account for surge wattage is the primary cause of generator overload.
The 80% Rule: Industry standards dictate that a diesel generator should operate at roughly 70-80% of its maximum rated capacity to ensure optimal fuel efficiency and engine health.
The Danger of Oversizing: Running a diesel engine on a light load (below 30%) causes "wet stacking," a condition where unburned fuel builds up in the exhaust system, severely reducing engine lifespan.
Environmental Derating: Altitude and ambient temperature significantly reduce engine horsepower and alternator cooling capacity, requiring capacity adjustments during the sizing process.
kVA vs. kW: Accurate sizing requires calculating both Kilovolt-Amperes (Apparent Power) and Kilowatts (Actual Power) based on the specific power factor of the facility's electrical system.
Establishing the baseline success criteria for power sizing means matching your facility's load profile to the engine's optimal operating curve. An engine performs best when it works hard enough to maintain high combustion temperatures but retains enough reserve capacity to handle sudden electrical spikes. Deviating from this optimal zone introduces significant mechanical and electrical risks. We see this constantly in the field. Contractors install massive units for small loads, or they underestimate the starting surge of heavy machinery. Both scenarios lead to failure.
Many people mistakenly buy the largest unit they can fit on the concrete pad, assuming extra capacity provides a safety net. This approach actively damages diesel engines. Diesel engines rely on high cylinder pressures and intense heat to fully combust fuel. When you run an engine below 30% of its rated capacity, the cylinder temperatures drop. The piston rings fail to expand fully against the cylinder walls.
This low-temperature operation causes unburned fuel and lubricating oil to bypass the rings and enter the exhaust manifold. Mechanics call this phenomenon "wet stacking." You will notice a thick, dark liquid oozing from the exhaust pipes, often referred to as exhaust slobber. Beyond the mess, the unburned fuel washes the critical lubricating oil off the cylinder walls. This leads to severe metal-on-metal friction and premature wear of the cylinder liners. Wet stacking also leads to severe carbon buildup on the fuel injectors, valves, and turbocharger blades. This carbon glazing destroys engine efficiency and severely reduces the lifespan of the equipment. Fixing a wet-stacked engine requires routine load bank testing. Technicians connect artificial resistive loads to force the engine to work hard, raising exhaust temperatures to burn off the carbon deposits. This wastes fuel, requires specialized labor, and increases your ongoing maintenance expenses.
Undersizing presents an immediate threat to your facility's electrical infrastructure. When a generator cannot handle the sudden surge loads required to start heavy motors, the system experiences severe voltage drops and frequency fluctuations. The alternator struggles to maintain the magnetic field required to push current through the wires. When the surge hits, the Automatic Voltage Regulator (AVR) attempts to compensate by pushing more excitation current into the rotor. If the engine lacks the horsepower to maintain 1800 RPM, the frequency drops.
These voltage and frequency dips create harmonic distortion across your electrical network. Sensitive electronics, such as server racks, medical imaging equipment, and programmable logic controllers (PLCs), will reboot, malfunction, or sustain permanent circuit board damage. Prolonged undersizing causes breakers to trip, overheating the alternator windings and ultimately resulting in total system failure precisely when you need emergency power the most. You cannot afford a brownout condition during a grid failure.
Accurate sizing requires breaking down your facility's power demands into specific technical metrics. You must evaluate the type of equipment you operate, the nature of your electrical service, and the duration you expect the unit to run. Field technicians use specific data points to build a load profile.
Running wattage represents the continuous power required to keep your equipment operating after it has already started. Starting wattage is the brief, high-draw electrical spike required to overcome the physical inertia of electric motors, compressors, and HVAC units. You must calculate both to prevent stalling the engine.
Standard inductive loads require massive starting currents. A commercial air conditioning compressor might require 3,000 running watts but demand 9,000 starting watts for the first three seconds of operation. If you only size the unit for the running wattage, the breaker will trip immediately upon startup. Always apply standard multiplier benchmarks for inductive loads. Multiply the running wattage of standard motors by three to estimate the starting wattage accurately.
You must match the alternator configuration to your building's electrical service. Residential homes and light commercial buildings typically utilize 120/240V single-phase systems. These systems deliver power across two hot wires and one neutral wire, suitable for standard appliances and lighting.
Industrial facilities and heavy commercial buildings utilize 120/208V or 277/480V three-phase systems. Three-phase power delivers three overlapping alternating currents, providing smoother, more consistent power for heavy machinery and large motor loads. You cannot easily convert a single-phase alternator to serve a three-phase load. Verify your phase requirements at the main electrical panel before making any equipment decisions.
Manufacturers rate equipment based on specific operational profiles. Applying the wrong rating to your application will void the warranty and cause premature failure.
Standby Power: Rated strictly for emergency use during utility outages. These units have no overload capability. You should only run them for the duration of the emergency, typically assuming a variable load that averages 70% of the maximum rating.
Prime Power: Rated for continuous operation as the primary power source where no utility grid exists. Prime-rated units handle variable loads indefinitely and typically allow a 10% overload capacity for one hour out of every twelve hours of operation.
Continuous Power: Rated to provide power to a constant, unvarying 100% load for an unlimited number of hours annually. Data centers and continuous manufacturing plants often require these heavy-duty ratings.
Diesel engines cannot accept 100% of their rated load in a single step. If you connect all your facility's equipment simultaneously, the sudden mechanical resistance will stall the engine or cause severe voltage drops. Engineers refer to the amount of load an engine can take in one step as its block load acceptance. Naturally aspirated engines can often take a 100% block load, but modern turbocharged engines typically max out at a 60% first-step load acceptance due to turbo lag.
NFPA 110 requirements for emergency power supply systems dictate how quickly a unit must accept life-safety loads. To prevent stalling, you must sequence your loads using staged automatic transfer switches. The system should transfer critical lighting and fire pumps first, followed by HVAC systems and non-essential loads a few minutes later. Proper load sequencing allows you to specify a smaller, more efficient engine because you do not have to account for every motor starting at the exact same millisecond.
Follow this repeatable, verifiable methodology to calculate your exact power requirements. Do not skip steps or rely on rule-of-thumb estimates.
Create a comprehensive load inventory. Walk through your facility and document every piece of equipment that requires emergency power. Include HVAC units, lighting circuits, server racks, refrigeration systems, and manufacturing machinery. You must identify all non-linear loads. Equipment like Uninterruptible Power Supplies (UPS), Variable Frequency Drives (VFDs), and large banks of LED lighting create harmonic distortion. Unlike simple resistive loads that draw current in a smooth sine wave, non-linear loads draw current in rapid, harsh pulses. This distortion heats up the alternator windings significantly. If a facility has a high percentage of non-linear loads, engineers often specify a larger alternator end attached to a standard-sized engine block. This oversized alternator provides the extra copper mass needed to safely dissipate the heat generated by the harmonic distortion without requiring a larger, fuel-hungry engine.
Read the data plates on every major piece of equipment. Extract the Amps, Volts, and Horsepower (HP) ratings. Do not use the marketing specifications found in manuals; use the hard data stamped on the metal plates attached to the motors.
Convert your collected data into a unified measurement of Watts. Use the standard formula: Watts = Amps × Volts. If a piece of equipment lists its power in Horsepower, convert it using the standard metric: 1 HP ≈ 746 Watts.
Accurate sizing requires understanding the difference between Actual Power (kW) and Apparent Power (kVA). Apparent power accounts for the total power drawn from the grid, including the power lost to magnetic fields in motors. Calculate this using the Power Factor (PF). The formula is kW = kVA × PF. For standard three-phase industrial systems, engineers use a baseline Power Factor of 0.8. If your total calculated load is 100 kW, your required apparent power is 125 kVA (100 / 0.8).
Equipment Load Multiplier Reference
Equipment Type | Running Wattage Base | Starting Wattage Multiplier |
|---|---|---|
Incandescent Lighting | 100% of rated bulb wattage | 1.0x (No surge) |
Standard Refrigerator | 600W - 800W | 3.0x |
Central Air Conditioner (3 Ton) | 3,500W | 2.5x - 3.0x |
Submersible Well Pump (1 HP) | 1,000W | 3.0x |
Industrial Air Compressor | Varies by HP | 4.0x |
Engines breathe air to combust fuel. High altitudes feature lower air density, meaning less oxygen enters the cylinder during each stroke. Extreme ambient temperatures also reduce air density and severely limit the alternator's ability to cool its copper windings.
If you install a unit in Denver, Colorado, it will not produce the same power as it would in Miami, Florida. Apply standard derating formulas to your calculations. Deduct 3% of the engine's total power capacity for every 1,000 feet above sea level. Deduct an additional 1% for every 10 degrees Fahrenheit above 77°F (25°C). You must oversize the unit to compensate for these environmental losses and ensure it delivers the required kW under local site conditions.
Standard Environmental Derating Multipliers
Altitude (Feet Above Sea Level) | Power Loss Percentage | Required Oversize Multiplier |
|---|---|---|
Sea Level to 1,000 ft | 0% | 1.00 |
3,000 ft | 9% | 1.10 |
5,000 ft | 15% | 1.18 |
7,000 ft | 21% | 1.27 |
10,000 ft | 30% | 1.43 |
The National Electrical Code (NEC) provides strict guidelines for continuous electrical loads. You should never plan to run a unit at 100% of its maximum capacity for extended periods. Operating at the absolute limit causes rapid overheating and mechanical fatigue.
Once you calculate your total peak starting load and adjust for environmental derating, add a 20-25% safety margin. This ensures the unit operates comfortably within the 70-80% optimal load band. This safety margin prevents engine strain during unexpected load spikes and provides headroom for future facility expansion.
Once you finalize your technical calculations, you must evaluate hardware options based on reliability, serviceability, and specific environmental constraints.
Selecting the right engine block dictates the long-term viability of your backup power system. You must evaluate the historical reliability, local parts availability, and certified service networks of leading manufacturers.
A Cummins Diesel Generator excels in heavy-duty industrial applications. These engines feature exceptional transient response, meaning they recover quickly from massive voltage dips when heavy block loads are applied. Facilities with large motor loads, such as water treatment plants and heavy manufacturing floors, benefit from this robust block-loading capability. Conversely, a Perkins Diesel Generator often provides superior steady-state fuel efficiency and a more compact physical footprint. Facilities with tight spatial constraints or those requiring long, continuous runtimes on steady loads frequently specify these engines to optimize their operational footprint.
Open-skid units produce deafening noise levels, often exceeding 100 dBA. You must analyze local zoning laws, municipal noise ordinances, and your proximity to property lines before selecting an enclosure.
If you operate near residential neighborhoods or office buildings, you must specify a Silent Diesel Generator. These units utilize heavy-gauge steel or aluminum enclosures lined with fire-retardant acoustic foam and mineral wool. They feature baffled air intakes and critical-grade exhaust mufflers to drive noise levels down to 65-70 dBA at 7 meters. However, you must account for the physical trade-offs. Sound attenuation enclosures significantly increase the physical footprint of the unit. They also restrict maintenance access and require precise airflow engineering to prevent the engine from overheating inside the insulated box.
Installing heavy power equipment involves complex logistical realities. You must address fuel management, environmental compliance, and physical site preparation.
Your required runtime dictates your fuel storage strategy. Hospitals and data centers often require 48 to 72 hours of continuous runtime, necessitating massive fuel reserves. NFPA 110 classifies systems by their required runtime; for example, a Class 48 system requires 48 hours of on-site fuel. You must choose between sub-base tanks (built directly under the skid) and external, standalone day tanks. Sub-base tanks must be double-walled and equipped with electronic leak detection sensors to comply with local environmental regulations.
Storing large volumes of diesel introduces degradation risks. Diesel fuel absorbs water and breeds microbial growth over time. If you install a large standby unit that rarely runs, the fuel will spoil, clogging the injectors during an emergency. You must install automated fuel polishing systems that periodically filter the fuel, remove water, and cycle it back into the tank to maintain readiness.
Air quality regulations strictly govern diesel emissions. You must ensure your equipment complies with EPA Tier 3 or Tier 4 Final emissions standards, depending on your jurisdiction and whether the unit serves as standby or prime power.
Tier 4 Final units utilize complex aftertreatment systems, including Diesel Exhaust Fluid (DEF) injection and Selective Catalytic Reduction (SCR) systems. These systems eliminate nitrogen oxides and particulate matter but require additional maintenance. You must factor the physical space required for DEF tanks and SCR canisters into your sizing and installation plans.
Relying on a single massive engine creates a single point of failure. If the unit malfunctions, your entire facility goes dark. Installing two smaller units in parallel often provides a superior engineering solution.
Paralleling provides N+1 redundancy. If one engine fails, the second engine seamlessly takes over the critical life-safety loads. Furthermore, paralleling prevents wet stacking. During periods of low electrical demand, the paralleling switchgear shuts down one engine and runs the remaining engine at a healthy 80% load. When demand spikes, the system automatically starts the second engine and synchronizes the power output.
Heavy power equipment requires substantial site preparation. You must pour a reinforced concrete pad capable of supporting the wet weight of the engine, alternator, enclosure, and a full tank of fuel. You must install vibration isolation mounts between the skid and the concrete to prevent structural damage to your building. Furthermore, the National Electrical Code (NEC) requires a minimum of three feet of working clearance around the entire unit to allow technicians safe access for maintenance and repairs.
Exhaust routing requires careful planning to ensure toxic gases vent safely away from building air intakes and operable windows. Finally, you must size and install an Automatic Transfer Switch (ATS). The ATS serves as the brain of the system. It continuously monitors the utility voltage. When grid power fails, the ATS sends a start signal to the engine. Once the alternator reaches the correct voltage and frequency, the ATS mechanically breaks the connection to the utility grid and closes the connection to the generator. This break-before-make operation prevents dangerous back-feeding, which could electrocute utility line workers repairing the grid. When utility power returns, the ATS reverses the process and initiates a cool-down cycle for the engine.
Document every piece of equipment in your facility to calculate exact running and starting wattage requirements.
Calculate your environmental derating factors based on your specific altitude and maximum summer ambient temperatures.
Engage a certified electrical engineer or licensed commercial electrician to perform a professional site load study.
Finalize the specifications for your Automatic Transfer Switch (ATS) to ensure safe load sequencing and grid isolation.
A: Running a unit below 30% capacity causes wet stacking. The engine fails to reach optimal operating temperatures, preventing piston rings from expanding. Unburned fuel and oil bypass the rings, glazing the cylinders with carbon and dripping from the exhaust. This destroys fuel efficiency, reduces engine lifespan, and requires expensive load bank testing to burn off the carbon deposits.
A: You can convert mechanical horsepower to electrical watts using a standard multiplier. One horsepower equals approximately 746 watts. If you have a 10 HP industrial motor, it requires roughly 7,460 running watts. Always remember to apply the appropriate starting multiplier to account for the motor's initial surge demand.
A: Standby units are designed for emergency use during utility outages, but they are not rated for unlimited continuous operation at maximum load. You should operate them at an average of 70% capacity during the outage. For permanent, off-grid continuous power, you must specify a prime or continuous-rated engine.
A: Non-linear loads, such as Variable Frequency Drives (VFDs), UPS systems, and LED lighting banks, draw current in abrupt pulses rather than smooth sine waves. This creates severe harmonic distortion that rapidly heats up the alternator windings. You must often oversize the alternator to safely dissipate this excess heat without stalling the engine.
A: Yes. Higher altitudes have lower air density, meaning less oxygen enters the combustion chamber. This reduces the engine's ability to burn fuel efficiently. Standard engineering practices require derating the engine's power output by roughly 3% for every 1,000 feet above sea level to prevent stalling under heavy loads.
A: Kilowatts (kW) measure Actual Power, which is the true power available to do physical work. Kilovolt-Amperes (kVA) measure Apparent Power, representing the total amount of power drawn from the system, including power lost to magnetic fields in inductive motors. You calculate kW by multiplying kVA by your system's Power Factor.
