| Quantity: | |
|---|---|
Product Attributes
Brand: Weichai
warranty period: 3months-1year
place of origin: China
Frequency: 50hz/60hz
Voltage: 230/400v(Can Be Adjusted)
Excitation Mode: Ac Rotating Exciter
Ship Certificates Of Inspection: Ccs, Bv, Abs Or According To Required
Alternator Brand: Stamford, Marathon, Faraday, Evotec Etc.
cooling system: Sea Water Heat Exchange Cooled
Phase&wire: 3p3w
Alternator type: Brush-Less,Self-Excited,Avr
Protection Class: Ip23
Insulation: H
Supply Ability & Additional Information

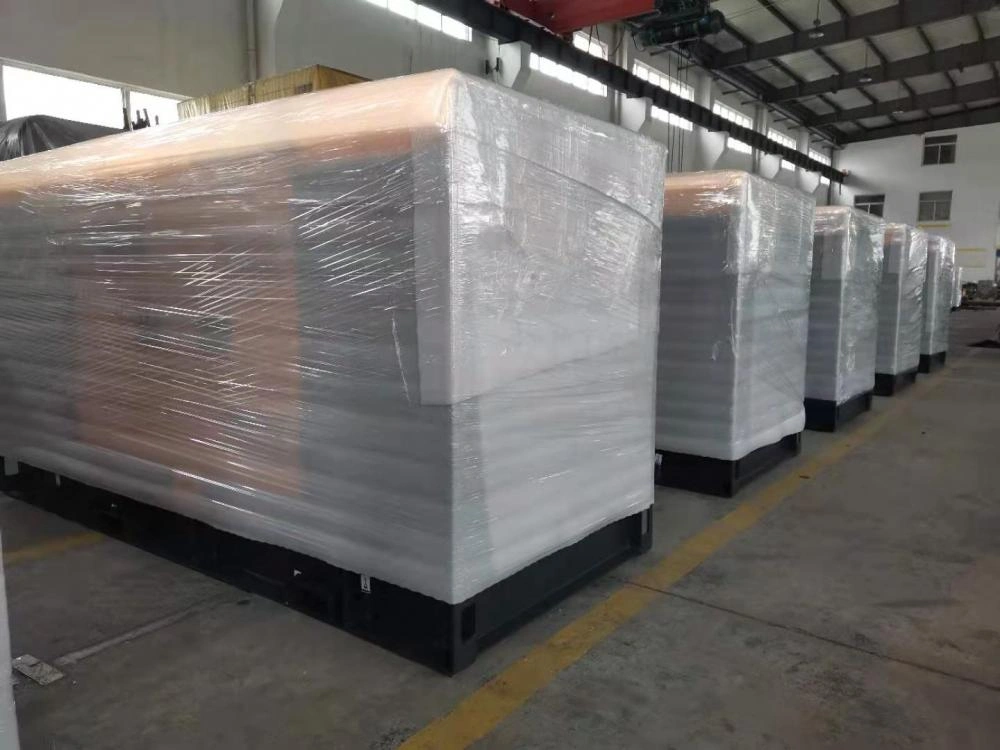

Packaging: Standard Seaworthy Packing
Productivity: 100 Sets One Month
Transportation: Ocean
Place of Origin: China
Supply Ability: 100 Sets One Month
Certificate: ISO
HS Code: 8502120000
Payment Type: L/C,T/T
Incoterm: FOB,CIF,EXW
Packaging & Delivery
Selling Units:
Set/Sets
Package Type:
Standard Seaworthy Packing
Description
Weichai is the earliest enterprise in China to develop and produce generator sets, and has a production history of more than 60 years. The power range of Weichai's Marine Generator sets is 10-1500kW. The sets use engines independently developed and produced by Weichai Group, equipped with well-known brand generators and controllers.
Main Features
1.The original Weichai engine inherits French military quality, is durable and takes a long time to overhaul.
2.Reliable operation, continuous rated power operation every 12 o'clock, allowing 110% overloading of rated power operation for 1 hour.
3.Compact structure, beautiful appearance, small space occupation, which is conducive to cabin layout.
4.Excellent performance indicators, low fuel consumption and strong environmental adaptability.
5. The public chassis is bent and formed with high-quality steel plates over 8-10mm, with high strength and low vibration.
6.Use composite chrome-plated shock absorber, makes the genset with low vibration and low noise.
7.Using a ship-specific flat-bottomed oil sump with an overall stamping design, while rationally arranging stiffeners to improve rigidity, no welds on the surface, and one-time forming to prevent leakage and improve reliability.
8.The rotating parts of the genset are all equipped with protective covers, is safe and reliable to operate.
9.The marine instrument box is equipped with intelligent modules, and the human-computer interaction interface is simple and friendly.
10.The important parts and components of the instrument box are imported or joint venture brands with reliable performance.
11.The genset can customize the instrument box with automatic functions according to customer needs.
12.The genset emissions can meet the requirements of IMO Phase II.
13.The service network covers the world, with more than 40 domestic offices, 4000 vertical maintenance service centers, with an average service interval of 50 kilometers, and more than 10 overseas offices.
Weichai Marine Type 50Hz/1500rpm m
Generator spec. | Engine Spec. | Genset Data | ||||||
Model | Rated Power | Frequency/ Voltage | Engine Model | Power/Speed kW/RPM | Cylinder No. | Dimensions L×W×H(mm) | Weight (kg) | |
KW | KVA | Hz/ V | ||||||
CCFJ10J-WTP | 10 | 12.5 | 50/400 | WP2.1CD18E1 | 17.5/1500 | 4 | 1240*700*1115 | 467 |
CCFJ12J-WTP | 12 | 15 | 50/400 | WP2.1CD18E1 | 17.5/1500 | 4 | 1240*700*1115 | 467 |
CCFJ16J-WTP | 16 | 20 | 50/400 | WP2.5CD22E1 | 22/1500 | 4 | 1240*700*1115 | 467 |
CCFJ20J-WTP | 20 | 25 | 50/400 | WP3.9CD33E1 | 33/1500 | 4 | 1314*700*1165 | 480 |
CCFJ24J-WTP | 24 | 30 | 50/400 | WP3.9CD33E1 D226B-3CD | 33/1500 36/1500 | 4 3 | 1500*1080*1180 | 1130 |
CCFJ30J-WTP | 30 | 37.5 | 50/400 | WP3.9CD38E1 TD226B-3CD | 38/1500 40/1500 | 4 3 | 1510*1080*1180 | 1150 |
CCFJ50J-WTP | 50 | 62.5 | 50/400 | WP4CD66E200 | 60/1500 | 4 | 1695*1250*1180 | 1250 |
CCFJ75J-WTP | 75 | 93.8 | 50/400 | WP4CD100E200 | 90/1500 | 4 | 1695*1250*1210 | 1350 |
CCFJ100J-WTP | 100 | 125 | 50/400 | WP6CD132E200 | 120/1500 | 6 | 2125*1250*1170 | 1640 |
CCFJ120J-WTP | 120 | 150 | 50/400 | WP6CD152E200 | 138/1500 | 6 | 2180*1250*1170 | 1650 |
CCFJ150J-WTP | 150 | 187.5 | 50/400 | WP10CD200E200 | 182/1500 | 6 | 2520*1250*1530 | 1950 |
CCFJ180J-WTP | 180 | 225 | 50/400 | WP10CD238E200 | 216/1500 | 6 | 2520*1250*1550 | 1980 |
CCFJ200J-WTP | 200 | 250 | 50/400 | WP10CD264E200 | 240/1500 | 6 | 2620*1250*1620 | 2100 |
CCFJ250J-WTP | 250 | 312.5 | 50/400 | WP12CD317E200 | 288/1500 | 6 | 2650*1250*1660 | 2180 |
CCFJ300J-WTP | 300 | 375 | 50/400 | WP13CD385E200 | 350/1500 | 6 | 2650*1250*1660 | 2300 |
CCFJ320J-WTP | 320 | 400 | 50/400 | WP13CD385E200 | 350/1500 | 6 | 2650*1250*1660 | 2300 |
CCFJ360J-WTP | 360 | 450 | 50/400 | 6M26CD447E200 | 406/1500 | 6 | 3010*1040*1600 | 3844 |
CCFJ400J-WTP | 400 | 500 | 50/400 | 6M26CD506E200 | 460/1500 | 6 | 3030*1040*1600 | 3874 |
CCFJ450J-WTP | 450 | 562.5 | 50/400 | 6M33CD550E200 | 500/1500 | 6 | 3140*1040*1600 | 3896 |
CCFJ500J-WTP | 500 | 625 | 50/400 | 12M26CD748E200 | 680/1500 | 12 | 3524*1521*1927 | 6263 |
CCFJ600J-WTP | 600 | 750 | 50/400 | 12M26CD748E200 | 680/1500 | 12 | 3596*1521*1927 | 6413 |
CCFJ700J-WTP | 700 | 875 | 50/400 | 12M26CD902E200 | 820/1500 | 12 | 3820*1521*1927 | 6841 |
CCFJ800J-WTP | 800 | 1000 | 50/400 | 12M26CD1012E200 | 920/1500 | 12 | 3895*1521*1927 | 7060 |
CCFJ900J-WTP | 900 | 1125 | 50/400 | 12M33CD1100E200 | 1000/1500 | 12 | 3914*1521*1927 | 7267 |
Weichai Marine Type 60Hz/1800rpm
Generator spec. | Engine Spec. | Genset Data | ||||||
Model | Rated Power | Frequency/ Voltage | Engine Model | Power/Speed kW/RPM | Cylinder No. | Dimensions L×W×H(mm) | Weight (kg) | |
KW | KVA | Hz/ V | ||||||
CCFJ24J-WTP | 24 | 30 | 60/440 | D226B-3CD1 | 36/1800 | 3 | 1500*1080*1180 | 1130 |
CCFJ30J-WTP | 30 | 37.5 | 60/440 | D226B-3CD1 | 36/1800 | 3 | 1550*1080*1180 | 1130 |
CCFJ40J-WTP | 40 | 50 | 60/440 | TD226B-3CD1 | 50/1800 | 3 | 1630*1080*1180 | 1180 |
CCFJ50J-WTP | 50 | 62.5 | 60/440 | WP4CD66E201 | 60/1800 | 4 | 1695*1250*1210 | 1250 |
CCFJ75J-WTP | 75 | 93.8 | 60/440 | WP4CD100E201 | 90/1800 | 4 | 1695*1250*1210 | 1270 |
CCFJ90J-WTP | 90 | 112.5 | 60/440 | WP4CD118E201 | 108/1800 | 4 | 1695*1250*1210 | 1280 |
CCFJ100J-WTP | 100 | 125 | 60/440 | WP6CD132E201 | 120/1800 | 6 | 2125*1250*1170 | 1640 |
CCFJ120J-WTP | 120 | 160 | 60/440 | WP6CD158E201 | 138/1800 | 6 | 2180*1250*1170 | 1650 |
CCFJ150J-WTP | 150 | 187.5 | 60/440 | WP10CD200E201 | 182/1800 | 6 | 2520*1250*1530 | 1950 |
CCFJ180J-WTP | 180 | 225 | 60/440 | WP10CD238E201 | 216/1800 | 6 | 2520*1250*1550 | 1980 |
CCFJ200J-WTP | 200 | 260 | 60/440 | WP10CD264E201 | 240/1800 | 6 | 2620*1250*1620 | 2100 |
CCFJ250J-WTP | 250 | 312.5 | 60/440 | WP12CD317E201 | 288/1800 | 6 | 2650*1250*1640 | 2140 |
CCFJ300J-WTP | 300 | 375 | 60/440 | WP13CD385E201 | 350/1800 | 6 | 2650*1250*1660 | 2280 |
CCFJ320J-WTP | 320 | 400 | 60/440 | WP13CD385E201 | 350/1800 | 6 | 2650*1250*1660 | 2300 |
CCFJ300J-WTP | 300 | 375 | 60/440 | 6M26CD447E201 | 406/1800 | 6 | 3010*1040*1600 | 3844 |
CCFJ360J-WTP | 360 | 450 | 60/440 | 6M26CD447E201 | 406/1800 | 6 | 3010*1040*1600 | 3844 |
CCFJ400J-WTP | 400 | 500 | 60/440 | 6M26CD506E201 | 460/1800 | 6 | 3030*1040*1600 | 3874 |
CCFJ450J-WTP | 450 | 562.5 | 60/440 | 6M33CD575E201 | 523/1800 | 6 | 3140*1040*1600 | 3896 |
CCFJ600J-WTP | 600 | 750 | 60/440 | 12M26CD748E201 | 680/1800 | 12 | 3596*1521*1927 | 6413 |
CCFJ650J-WTP | 650 | 812.5 | 60/440 | 12M26CD792E201 | 720/1800 | 12 | 3620*1521*1927 | 6568 |
CCFJ700J-WTP | 700 | 875 | 60/440 | 12M26CD902E201 | 820/1800 | 12 | 3820*1521*1927 | 6841 |
CCFJ800J-WTP | 800 | 1000 | 60/440 | 12M26CD1012E201 | 920/1800 | 12 | 3895*1521*1927 | 7060 |
CCFJ900J-WTP | 900 | 1125 | 60/440 | 12M33CD1150E201 | 1046/1800 | 12 | 3914*1521*1927 | 7267 |
Looking for ideal 350kW Diesel Generator MPS Manufacturer & supplier ? We have a wide selection at good prices to help you get creative. All the 300kW Diesel Generator are quality guaranteed. We are China Origin Factory of 275kW Diesel Generator. If you have any question, please feel free to contact us.
