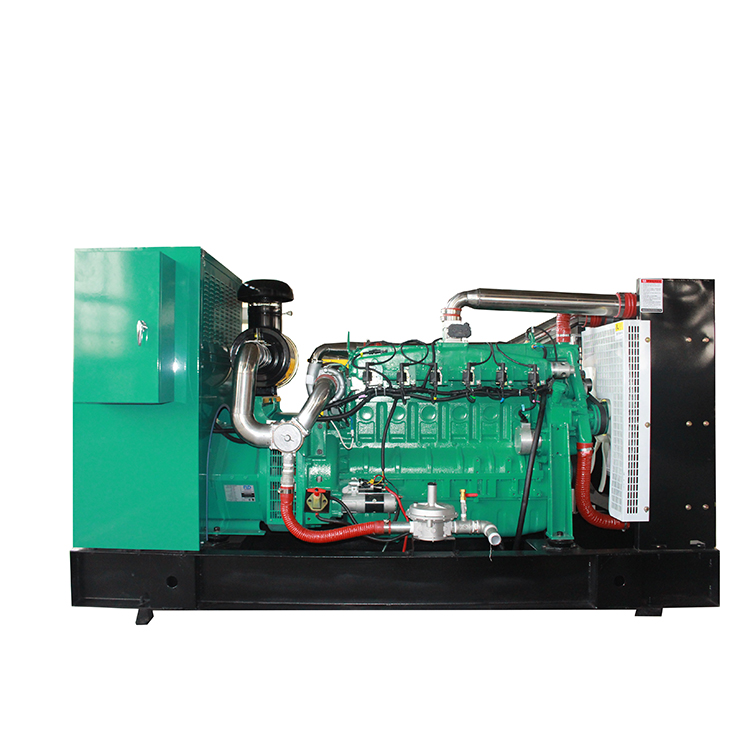

A reliable power system depends entirely on its fuel supply. Improper fuel pressure causes failure to start, erratic operation, or stalling during load transfers. When a facility loses power, the engine must instantly draw massive amounts of fuel to maintain synchronous speed. If the gas train cannot deliver the required volume at the correct pressure, the backup system fails. Facility engineers often face operational risks due to undersized gas lines and incorrect regulator settings. These flaws lead to fuel starvation and fluctuating engine RPMs. A common point of confusion is utility delivery pressure versus the actual pressure required at the engine's fuel train. The pressure supplied by the local gas utility at the meter does not automatically equal the engine-ready pressure required at the demand regulator. Operators must evaluate static versus dynamic pressure, calculate pipe sizing based on friction loss, and adhere strictly to manufacturer requirements.
Measurement Standards: Gas generator fuel pressure is universally measured in inches of water column (in WC), requiring precise manometer testing rather than standard PSI gauges.
Static vs. Dynamic: A system must be evaluated based on dynamic (running) pressure under full load; static pressure readings alone are insufficient for determining operational viability.
Volume vs. Pressure: High pressure cannot compensate for inadequate gas volume; pipe diameter, length, and friction loss must be calculated to ensure sufficient BTU/hr delivery.
OEM Compliance: Failing to meet the exact pressure tolerances specified by manufacturers voids warranties and compromises the reliability of critical backup infrastructure.
Continuous power generation requires a consistent flow of combustible fuel that matches the engine's real-time demand. The baseline requirement for any internal combustion engine driving an alternator is maintaining a locked speed. This is typically 1800 RPM for 60Hz applications or 1500 RPM for 50Hz applications. When a heavy electrical load hits the alternator, the engine governor commands the throttle actuator to open wide. The engine needs to draw in more fuel and air instantly. If the fuel supply line cannot provide the necessary volume at the correct pressure, the manifold vacuum drops without pulling in enough gas. The engine speed drops, causing the electrical frequency to plummet.
The mechanics of fuel starvation manifest clearly on site. You will see engine hunting, where the RPM surges up and down as the governor desperately tries to find a stable fuel-to-air ratio. You will observe frequency drops, incomplete combustion leading to excessive exhaust emissions, and automatic shutdowns triggered by the engine's low-pressure sensors. Manufacturers design these sensors to protect the engine from running dangerously lean. Lean combustion creates excessive cylinder temperatures, which melt pistons and destroy valves.
Reduced electrical output, or a kW capacity drop, confuses many operators. In cases of marginal fuel starvation, the gas generator continues to run, but it produces significantly lower wattage than its nameplate rating. Site managers often see the engine running smoothly at no-load and assume the system is ready. When the facility load transfers, the generator fails to carry it. The engine simply lacks the British Thermal Units (BTUs) available to convert into mechanical horsepower. The result is a stalled engine or a tripped breaker.
Understanding the difference between static pressure and dynamic pressure separates successful installations from failed ones. Static pressure is measured when the gas line is pressurized, but the generator is off. The gas is not moving. Dynamic pressure, or running pressure, is measured when the generator is running at 100% load. The risk lies in the pressure drop, or drawdown, that occurs the moment the gas valve opens and the engine demands maximum BTU/hr. A system might show a perfect 11 inches of water column (in WC) statically. When the throttle opens, that pressure can plummet to 3 in WC dynamically, causing an immediate shutdown.
Engineers map the physical properties of the fuel system to the engine's requirements to guarantee performance. The primary evaluation dimensions include fuel type, energy density, vaporization rates, pipe friction loss, and specific gravity. You cannot guess these numbers. You must calculate them based on the physical realities of the site.
The first variable is the BTU requirement based on the fuel type. Natural Gas (NG) and Liquid Propane (LP) vapor have vastly different energy densities. Natural gas provides about 1,000 BTUs per cubic foot. LP vapor provides approximately 2,500 BTUs per cubic foot. This energy density dictates the required flow rates, measured in Cubic Feet per Hour (CFH). Because LP is more energy-dense, an engine requires fewer cubic feet of LP than NG to produce the same electrical output. LP systems operate at higher pressures, usually 10 to 12 in WC, compared to NG systems, which run at 5 to 7 in WC.
LP tank vaporization and runtime calculations introduce another layer of complexity for off-grid or backup systems. Liquid Propane must boil inside the tank to turn into the vapor that the engine burns. This vaporization rate is directly tied to the ambient temperature and the wetted surface area inside the tank. In freezing temperatures, a small LP tank cannot vaporize liquid fast enough to keep up with a large generator's demand. The liquid literally refrigerates itself as it boils. Frost forms on the outside of the tank. The pressure inside the tank drops, the line pressure drops, and the generator starves for fuel. Sizing the LP tank correctly based on the lowest historical winter temperature is just as important as sizing the pipe.
Pipe friction loss and distance dictate the final delivery pressure. As gas travels through a pipe, it drags against the interior walls. This drag causes a loss of pressure. The further the distance from the primary meter or regulator to the generator, the greater the pressure drop. Straight pipe is not the only factor. Every elbow, tee, and valve creates turbulence, adding to the total friction loss. We calculate this as the equivalent length of pipe.
Specific gravity and pipe sizing charts provide the mathematical foundation for these systems. The International Fuel Gas Code (IFGC) provides standardized tables based on the specific gravity of the gas. Natural gas has a specific gravity of 0.60. LP vapor has a specific gravity of 1.50. The allowable pressure drop is typically restricted to 0.5 in WC across the entire run. Using these charts ensures that the chosen pipe diameter handles the required CFH over the calculated distance without exceeding the allowable pressure drop.
Typical Fuel Gas Characteristics and Pressure Requirements
Fuel Type | Energy Density (BTU/cu ft) | Specific Gravity | Typical Operating Pressure (in WC) |
|---|---|---|---|
Natural Gas (NG) | ~1,000 | 0.60 | 5.0 - 7.0 |
Liquid Propane (LP Vapor) | ~2,500 | 1.50 | 10.0 - 12.0 |
Mechanical contractors need a repeatable framework to calculate infrastructure needs accurately. Guesswork in gas piping leads to failed commissioning tests and expensive rework. Follow this exact sequence to determine the correct pipe size and pressure requirements for any installation.
Determine Maximum Load BTU/hr Demand: Locate the generator's technical specification sheet. Ignore the 50% load rating. Find the fuel consumption data for 100% full load operation. This number is listed in BTU/hr. A 250kW standby unit might require 3,000,000 BTU/hr at full load. This is your absolute baseline. The piping system must deliver this amount of energy continuously.
Identify the OEM Pressure Range: Check the installation manual for the acceptable operating pressure range at the generator's fuel inlet. A standard specification reads: "5 to 7 inches of water column under all load conditions." The pressure must remain within this strict window during zero-load and full-load states. If the static pressure is 9 in WC, it is out of spec and will damage the internal demand regulator.
Calculate Pipe Flow Capacity (CFH): Convert the BTU/hr demand into Cubic Feet per Hour (CFH). Divide the total BTU/hr by the energy value of the gas. Using the 3,000,000 BTU/hr example on Natural Gas: 3,000,000 divided by 1,000 equals 3,000 CFH. The gas meter and the piping infrastructure must flow a minimum of 3,000 CFH.
Factor in the Equivalent Length of Pipe: Measure the physical linear distance from the gas meter to the generator connection point. Count every fitting in the planned route. Each fitting adds resistance. A standard 90-degree elbow on a 2-inch pipe adds roughly 5.5 feet of equivalent length. A tee adds 11 feet. If your physical run is 120 feet, but you have four elbows and two tees, your total equivalent length is 164 feet. You must use this 164-foot number when consulting the sizing charts.
Apply a Real-World Sizing Scenario: Take your total CFH (3,000) and your total equivalent length (164 feet) to the IFGC sizing chart for your specific gas type and allowable pressure drop. A 2-inch pipe might carry 3,000 CFH up to 50 feet. At 164 feet, it only carries 2,600 CFH. The 2-inch pipe will fail dynamically under load. To maintain volume over 164 feet, the chart dictates stepping up to a 2.5-inch or 3-inch diameter pipe.
Equivalent Length of Pipe Fittings (Feet)
Fitting Type | 1" Pipe | 1.5" Pipe | 2" Pipe | 3" Pipe |
|---|---|---|---|---|
90-Degree Elbow | 2.6 | 4.0 | 5.5 | 8.0 |
45-Degree Elbow | 1.2 | 1.8 | 2.5 | 3.8 |
Standard Tee | 5.2 | 8.0 | 11.0 | 16.0 |
Fuel pressure requirements scale dramatically with enterprise-level equipment. Commercial systems feature specific manufacturer architectures that demand tighter tolerances and higher volumes. Understanding the mechanical nuances of different engine brands ensures compliance and long-term reliability.
When engineering a system around a Cummins Gas Generator, pay close attention to specific regulator requirements and transient load response capabilities. Cummins lean-burn gas units are highly efficient but require a highly stable fuel supply to maintain precise air-to-fuel ratios. A sudden drop in dynamic pressure causes a lean misfire. The engine control module (ECM) will shed load or shut down entirely to protect the cylinders from detonation. Standby units often require dual-stage regulation to ensure the pressure remains dead-steady during massive block load applications.
For cogeneration or Combined Heat and Power (CHP) applications, a Jenbacher Gas Generator operates under different parameters. These engines run continuously parallel to the utility grid. The fuel train requirements for Jenbacher systems are incredibly stringent. They utilize specialized gas trains with zero-governor regulators and double-block-and-bleed valves. Because they run continuously, any fluctuation in fuel pressure directly impacts the financial return of the CHP system by reducing the electrical output exported to the grid. The gas supply must be engineered for zero pressure drift over thousands of operating hours.
In heavy industrial sectors, such as mechanical drive and gas compression, the fuel demands of a Waukesha Gas Generator are robust. Waukesha engines handle variable fuel qualities, including wellhead gas and digester gas. These fuels inherently have fluctuating BTU values. To compensate for lower energy density fuels, the physical volume of gas required increases significantly. The piping infrastructure must be oversized. Pressure consistency keeps the mechanical drive operating smoothly without torque spikes. Waukesha systems require custom-engineered fuel trains capable of handling higher pressures and larger CFH flows than standard standby units.
Calculations on paper mean nothing if they are not verified on site. Improper testing methodologies lead to false confidence and eventual system failure during an outage. Verifying fuel pressure requires specific tools and a rigorous testing protocol.
Standard PSI gauges are useless for low-pressure gas systems. You must use a manometer. Analog U-tube manometers use water displacement to show pressure, offering foolproof accuracy. Digital manometers provide faster readings and record pressure spikes or drops over time. To test the system, tap into the fuel system correctly. Take the reading at the lower test port on the generator's demand regulator, just before the gas enters the carburetor or mixer.
Conducting the dynamic load test is the ultimate proof of system viability. Follow this procedure:
Connect the manometer to the test port and record the static pressure with the generator off.
Start the generator and let it idle. Record the no-load running pressure.
Apply a step-load using a load bank. Start at 25%, then 50%, then 75%, and finally 100%.
Monitor the manometer continuously. The pressure will dip slightly as the throttle opens, but it must recover instantly and remain above the OEM minimum threshold.
If the pressure drops below the minimum requirement at any load step, the test is a failure.
If the dynamic test fails, isolate the pressure drop. Move the manometer upstream. Test the pressure immediately after the primary utility meter, and then test it again before the secondary demand regulator. If the pressure drops significantly at the meter, the utility company needs to install a larger meter capable of higher CFH. If the pressure is strong at the meter but weak at the generator, the piping is undersized or restricted.
Troubleshooting pressure fluctuations reveals common culprits. Undersized primary meters are frequent offenders. A residential meter cannot support a commercial generator. Faulty secondary regulators stick, failing to open fast enough to meet transient load demands. Locked-up gas utility valves, debris in the line, or water accumulation in drip legs cause severe flow restrictions that ruin dynamic pressure readings.
Common Fuel Pressure Troubleshooting Matrix
Symptom | Probable Cause | Field Action |
|---|---|---|
High Static Pressure (e.g., 14+ in WC) | Primary regulator failure or incorrect spring installed. | Replace primary regulator or adjust spring tension to OEM spec. |
Severe Dynamic Pressure Drop | Undersized piping, excessive fittings, or undersized utility meter. | Recalculate equivalent length. Upgrade pipe diameter or utility meter. |
Hunting/Surging RPM under load | Fluctuating gas pressure or sticking demand regulator. | Clean or replace demand regulator. Verify primary supply stability. |
Engine runs lean, high exhaust temps | Marginal fuel starvation. Volume is too low for the applied load. | Verify CFH capacity of the entire gas train. Check for line restrictions. |
When a facility fails its pressure calculations or dynamic tests, management faces a capital expenditure decision. Fixing a fuel starvation issue requires evaluating the most cost-effective path to compliance.
The first option is increasing the pipe diameter. This guarantees long-term reliability by providing adequate gas volume through sheer physical capacity. The cost-to-benefit ratio can be challenging. If the generator is located 200 feet from the gas meter across a paved parking lot, trenching, laying larger diameter pipe, and repaving represents a massive upfront cost. While it solves the friction loss problem permanently, the civil works costs can easily exceed the cost of the generator itself.
The alternative is utilizing elevated pressure systems. Instead of running low-pressure gas through a massive pipe, the utility company supplies high-pressure gas at the meter. This is typically 2 PSI or 5 PSI. This high-pressure gas travels through a much smaller, less expensive pipe over long distances because the higher starting pressure easily overcomes friction loss. A secondary step-down regulator is installed immediately before the generator to reduce the 2 PSI line pressure down to the required 7 in WC.
This elevated pressure approach saves immense amounts of money on piping materials and labor. It requires coordination with the gas utility to ensure they can deliver 2 PSI to the site. High-pressure regulators require specific venting lines routed away from ignition sources to comply with fire codes. Engineers weigh the civil costs of large pipes against the regulatory and design requirements of high-pressure step-down systems.
Review your site's utility meter data plate to confirm the maximum CFH rating exceeds your generator's 100% load demand.
Install a dedicated test port immediately upstream of the engine's demand regulator for routine manometer hookups.
Schedule a dynamic load bank test with a certified technician to verify running pressure under a full block load.
Replace any primary regulators that show a pressure drawdown exceeding 1.5 inches of water column during transient load steps.
A: Inches of water column (in WC) is a precise unit of measurement used for very low-pressure gas systems. One PSI equals approximately 27.7 in WC. Because gas generators typically operate between 5 and 12 in WC (roughly 0.18 to 0.43 PSI), standard PSI gauges lack the sensitivity to measure these minute increments accurately, making a manometer essential.
A: Pressure drops under load due to the transition from static to dynamic pressure. When the engine demands more fuel, gas flows rapidly through the pipe. If the pipe is undersized, has too many restrictive fittings, or the utility meter lacks CFH capacity, friction loss overcomes the supply pressure, causing a significant drawdown at the generator.
A: Yes. Marginal fuel starvation allows the engine to run at no-load but prevents it from carrying its full rated electrical load. The engine lacks the BTU volume required to convert into mechanical horsepower, resulting in poor wattage output, frequency drops, and potential stalling when facility loads are applied.
A: Yes. Excessive fuel pressure can overpower the internal demand regulator's springs and diaphragms. This leads to rich running conditions, internal gas leaks, or the complete failure of the fuel solenoid valve to open against the high pressure, preventing the engine from starting.
A: Pressure is the physical force pushing the gas through the line, measured in WC or PSI. Volume is the actual amount of fuel available, measured in Cubic Feet per Hour (CFH). High pressure forced through a tiny pipe still results in volume starvation because the physical space cannot flow enough CFH to meet engine demand.
A: You must check the utility meter's data plate for its maximum CFH rating. Compare this rating against the total CFH demand of your generator at 100% load, plus the demand of any other gas appliances on the same meter. If the total demand exceeds the meter's rating, the utility must upgrade it.
