Miscalculating the capacity of your cold storage facility exposes you to severe operational risks. You simply cannot afford to guess when designing these massive environments. Undersizing causes compromised product safety, regulatory compliance failures, and continuous equipment overload. Conversely, oversizing wastes immediate capital expenditure and heavily inflates daily operational expenditure. This guide moves beyond basic online calculators. We will equip procurement heads, facility managers, and engineers using a definitive industry-standard framework. Our approach aligns perfectly alongside ASHRAE and Eurovent guidelines. You will learn to calculate both physical storage tonnage and thermodynamic cooling loads accurately. We take a highly skeptical stance toward quick rules of thumb. Our focus remains on conducting a rigorous design basis review before you finalize any equipment shortlists.
Two-Part Equation: "Capacity" refers to both physical storage volume (tonnage) and the thermodynamic cooling load (kW or BTU/h) required to maintain target temperatures.
The 75% Rule: The product itself—not the room—typically accounts for 55% to 75% of the total heat load, primarily driven by phase change (latent heat) and biological respiration.
Operational Realities: Precise equipment sizing does not assume 24/7 compressor operation; calculations must be divided by an expected daily runtime (typically 14–16 hours) to allow for defrost cycles and longevity.
Industry professionals must clarify the distinction between physical storage capacity and refrigeration capacity. Storage capacity dictates how much physical product fits inside the facility. Refrigeration capacity dictates how much thermal energy you must remove to maintain set temperatures.
Calculating your physical storage tonnage requires a foundational formula. You multiply three specific variables together to find your baseline.
Internal Volume × Volume Utilization Factor × Product Unit Weight = Total Storage Tonnage
Volume utilization factors vary significantly based on scale. When planning a Large Capavity Cold Room spanning 10,000 to 15,000 cubic meters, managers typically achieve a utilization factor of 0.55 to 0.60. Smaller commercial rooms hover around 0.40. Smaller spaces require proportionally larger aisles and clearance gaps for forklift navigation. Massive facilities optimize vertical racking systems better.
Product density variables also dictate your final storage tonnage. Different goods pack differently. A pallet of frozen beef weighs considerably more than a pallet of fresh lettuce. We compiled industry benchmark metrics below to guide your initial estimates.
Product Type | Estimated Density (tons/m³) | Storage Characteristic |
|---|---|---|
Frozen Meat (Carcass) | ~0.40 | Requires hanging rails, lowering volume density. |
Fresh Fruits & Vegetables | ~0.23 | Requires high airflow packaging and wide gaps. |
Deboned Meat Cuts (Boxed) | ~0.60 | Stacks efficiently on standard pallets. |
Machine Ice | ~0.75 | Highly dense, stacks uniformly. |
Calculating heat loads without defining the operational environment guarantees failure. Engineers call this the "garbage-in, garbage-out" paradigm. You must confirm several critical evaluation dimensions before running any thermodynamic formulas. Skipping this step leads to disastrous equipment selection.
Climate & Ambient Data: Identify peak summer outdoor temperatures for your specific region. You must also evaluate solar radiation factors. Direct sunlight drastically increases heat transmission through your facility roof.
Product Lifecycle: Determine local harvest seasons and core product entry temperatures. Understand your expected shelf-life targets. Entering produce at 25°C requires vastly different cooling loads than entering pre-chilled meat at 4°C.
Packaging Formats: Corrugated boxes, shrink wrap, and wooden pallets alter thermal resistance. Thick packaging slows down the cooling process. It traps heat inside the pallet core.
Infrastructure Layout: Note proximity to external high-heat zones. Adjacent commercial bakeries or open external loading docks transfer massive ambient heat. You must also verify your available electrical bandwidth to support heavy compressor startups.
Common Mistakes: Facility managers often use average annual temperatures instead of peak summer temperatures. Always design your system to handle the absolute hottest day of the year. Otherwise, your system will fail when you need it most.

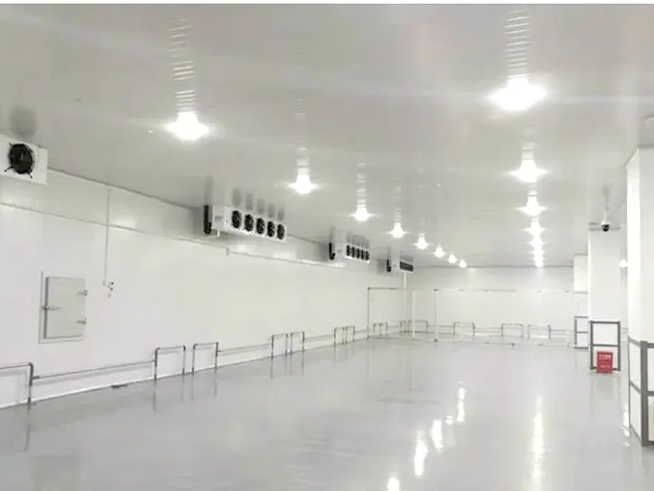

Calculating the exact thermodynamic cooling load for a Large Capavity Cold Room requires breaking down five distinct heat sources. Each source contributes uniquely to your daily thermal burden.
Heat Source Component | Typical Percentage of Total Load | Primary Driver |
|---|---|---|
Transmission Load | 5% – 15% | Insulation quality and outdoor climate. |
Product Load | 55% – 75% | Incoming product temperature and mass. |
Internal Load | 10% – 20% | Forklifts, lighting, and human activity. |
Equipment Load | 1% – 10% | Evaporator fans and defrost heaters. |
Infiltration & Ventilation | 1% – 10% | Door openings and fresh air intakes. |
Heat constantly penetrates facility roofs, walls, and floors. Modern Polyurethane Foam (PUF) panels currently dominate thermal resistance standards. Their superior K-value renders traditional brick insulation values almost negligible during calculations. You calculate transmission load using panel surface area, insulation K-value, and the temperature differential between outside and inside environments.
New inventory brings massive thermal energy inside. This represents your largest single heat source. You calculate this using total product mass, specific heat capacity, and required temperature differentials (ΔT). If you bring in twenty tons of warm beef daily, your system works immensely hard to pull that core temperature down.
Heat generates internally from working personnel, moving forklifts, and overhead lighting. Different light sources yield varying heat output conversions. Legacy incandescent bulbs release 0.5 to 1.5W of heat per watt consumed. LED fixtures emit significantly lower thermal energy. Furthermore, electric forklifts generate far less heat than combustion engines.
Your own refrigeration hardware introduces unavoidable heat. Evaporator fan motors run constantly inside the chilled space. They generate friction and electrical heat. Mandatory defrost cycles also melt ice buildup by applying direct electrical heat into the evaporator coils. Your compressors must subsequently remove this self-generated heat.
You must rigorously distinguish between infiltration and ventilation. Infiltration represents passive, accidental air exchange. This happens whenever forklifts breach open doors. Ventilation represents active, engineered air exchange. You need active ventilation to remove dangerous CO2 emissions generated by fresh, respiring produce.
Engineers separate product cooling dynamics into sensible heat and latent heat. You must understand this physics concept to avoid catastrophic undersizing.
Lowering a product's temperature down to its freezing point requires sensible heat removal. It consumes relatively low, predictable energy. The thermometer drops steadily. However, the physics of freezing change dramatically at the actual crystallization phase.
Removing latent heat demands massive energy spikes. The thermometer stops dropping while the product physically turns to ice. For example, chilling water requires removing just 4.18 kJ/kg per degree Celsius. Freezing that same water requires removing approximately 271 kJ/kg during the phase change alone. If your calculation ignores latent heat during freezing operations, your system will stall indefinitely.
Respiration load creates unique positive temperature challenges. Living organisms like fresh fruits and vegetables continue metabolizing oxygen long after harvest. They constantly release biological heat and water vapor. Apples, for instance, respire heavily.
You must map this biological heat curve against your facility's ventilation schedule. Failing to do so causes rapid CO2 accumulation and early spoilage. High respiration rates demand higher cooling capacities just to maintain a steady ambient temperature.
You never size mechanical equipment based strictly on theoretical peak calculations. Operational realities demand practical buffers.
Industry standards dictate applying a 10% to 30% redundancy margin. You multiply your total calculated daily cooling load by this safety factor. This crucial buffer cushions your facility against unpredictable variables. Forklifts break down while holding main doors open. Extreme summer heatwaves strike unexpectedly. Products occasionally arrive much warmer than scheduled. The safety factor protects your inventory during these inevitable crises.
Compressor runtime sizing requires careful division logic. You calculate your total daily cooling load in kilowatt-hours per day (kWh/day). Amateurs mistakenly divide this daily total by 24 hours. Compressors simply cannot run continuously. Continuous operation destroys the mechanical seals and prevents necessary defrosting.
You must assume a standard 14-to-16 hour compressor runtime. This operational window allows adequate time for routine maintenance, evaporator defrost cycles, and vital mechanical rest. Dividing your total daily load by 14 hours yields your final required capacity rating. We typically measure this final rating in kilowatts (kW) or Tons of Refrigeration. One standard Ton of Refrigeration (TR) equals exactly 3.517 kW.
Many legacy contractors rely on outdated averages to size new equipment. Common heuristics suggest allocating 15-20 W/m³ for deep freezers and 60-70 W/m³ for fresh produce storage. We firmly debunk this approach for enterprise-scale projects.
These basic metrics scale terribly for massive facilities. The math breaks down due to basic geometry. Volume increases much faster than surface area. The surface-to-volume ratio changes radically in massive rooms. Relying on cubic-meter averages often results in massive over-sizing or dangerous under-sizing. A minor mathematical error per cubic meter compounds exponentially across a 15,000 cubic meter facility.
Relying on exact, granular calculations ensures strict regulatory compliance. Precise engineering aligns your facility directly against Eurovent or ASHRAE standards. This engineering rigor directly impacts your business outcomes. Accurate sizing prevents evaporator coils from freezing solid. It drastically reduces cyclical compressor wear. Ultimately, precise sizing lowers your long-term daily operational expenditures.
Calculating facility capacity remains a strict engineering exercise. It is never a guesswork phase. We clearly see two dominant variables controlling your success. First, you must map product behavior accurately, focusing on latent heat and biological respiration. Second, you must model operational habits correctly, focusing on door infiltration and realistic compressor runtimes.
We recommend moving away from manual spreadsheets immediately. Manual entries invite human error. Utilize OEM-grade sizing software provided by major equipment manufacturers. Better yet, commission an ASHRAE-certified HVAC-R engineer to secure your final capital expenditure approvals. Precision up front guarantees performance down the line.
A: Infiltration refers to passive, accidental air leaks. This occurs rapidly when workers open doors for forklifts. It introduces unwanted warm air and humidity. Ventilation involves active, engineered air management. These mechanical systems deliberately exchange indoor air with outside air to control dangerous CO2 levels emitted by fresh produce.
A: Industry standards define one Ton of Refrigeration (TR) as exactly 3.517 kilowatts (kW). In the imperial system, this equivalent is exactly 12,000 BTU/h. You will use this conversion constantly when translating thermodynamic heat load requirements into physical equipment sizing metrics.
A: You never run a commercial compressor for 24 hours straight. Industry best practices assume a maximum 14-to-16 hour daily runtime. This allows critical periods for equipment rest and mandatory coil defrost cycles. We also apply a 10% to 30% safety factor buffer for unexpected heat events.
