Large Capavity Cold Room / Cold Storage Warehouse

Whether you are looking for cold rooms, refrigeration condensing units, insulation panels, evaporator air coolers, Royal is the professional manufacturer.
Royal walk-in cooler, typical temperature range of -5°C to +20°C (+23°F To +68°F). It can store vegetables, fruits, dairy products, beverages etc. Cooler is staples of logistics warehouse, restaurants, farms, hotels, supermarkets facilities.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Large cold room blast freezer

Whether you are looking for cold rooms, refrigeration condensing units, insulation panels, evaporator air coolers, Royal is the professional manufacturer.

Royal walk-in cooler, typical temperature range of -5°C to +20°C (+23°F To +68°F). It can store vegetables, fruits, dairy products, beverages etc. Cooler is staples of logistics warehouse, restaurants, farms, hotels, supermarkets facilities.

FEATURES AT A GLANCE

Walk in cooler has the following features

1. Nice appearance :The insulation panel and framework are available in dozens of colors which are to be elected in satisfactory harmony with various styles of buildings. 2. Insulation : Polyurethane or polystyrene with low thermal conductivity and high strength is utilized, achieving good insulation performance. 3. Short construction period 4. Fast installation 5. Hygienic conditions of food inside cold stores are up to the standards. 6. Durable building structure, super quality material

No	Item	Data
1	Dimension	Customized
2	Temperature	-15C ~ -40C
3	Cold room door	Sliding door /hinged door
4	Capacity	50 tons
5	Compressor	Bitzer/Emerson/Hanbell etc
6	Insulation panels	PUR/PIR
7	Surface material	PPGI
8	Power	380v/220v/440v as your side

PRODUCT CONFIGURATION

Cold Room Components

The complete set of cold room cold storage includes 4 main parts 1. Cold storage panels 2. Air cooler 3. Condenser unit 4. Accessories

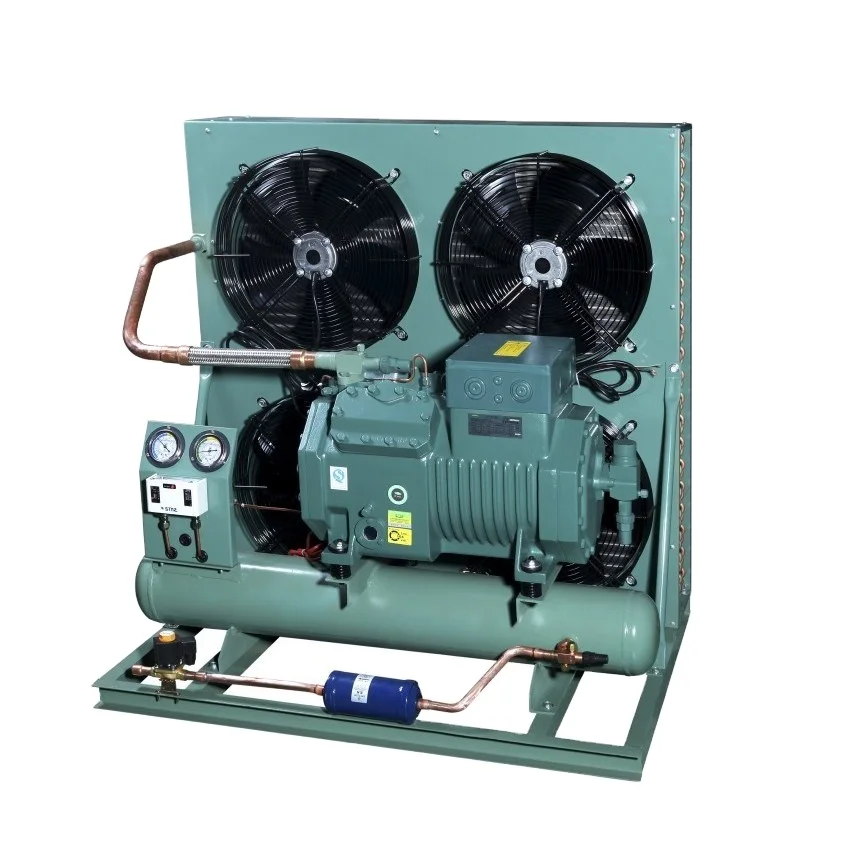

Refrigeration Unit

1).Condenser unit type : open type / box type / monoblock unit
2).Compressor brands: Germany Original Bitzer compressor /American Original Emerson (Copeland) compressor
3).Refrigerant: R404A, R134A, R507C ETC.

Air Cooler/ Evaporator

1). Temperature range : for medium temp/ low temp/ ultra low temp (as you want)
2). Case material : PPGI / Stainless steel / Aluminum steel
3). Fins : Blue fins (hydrophlic foil fins, which is anti-corrosion)
4). Fans : low noise/ high effective

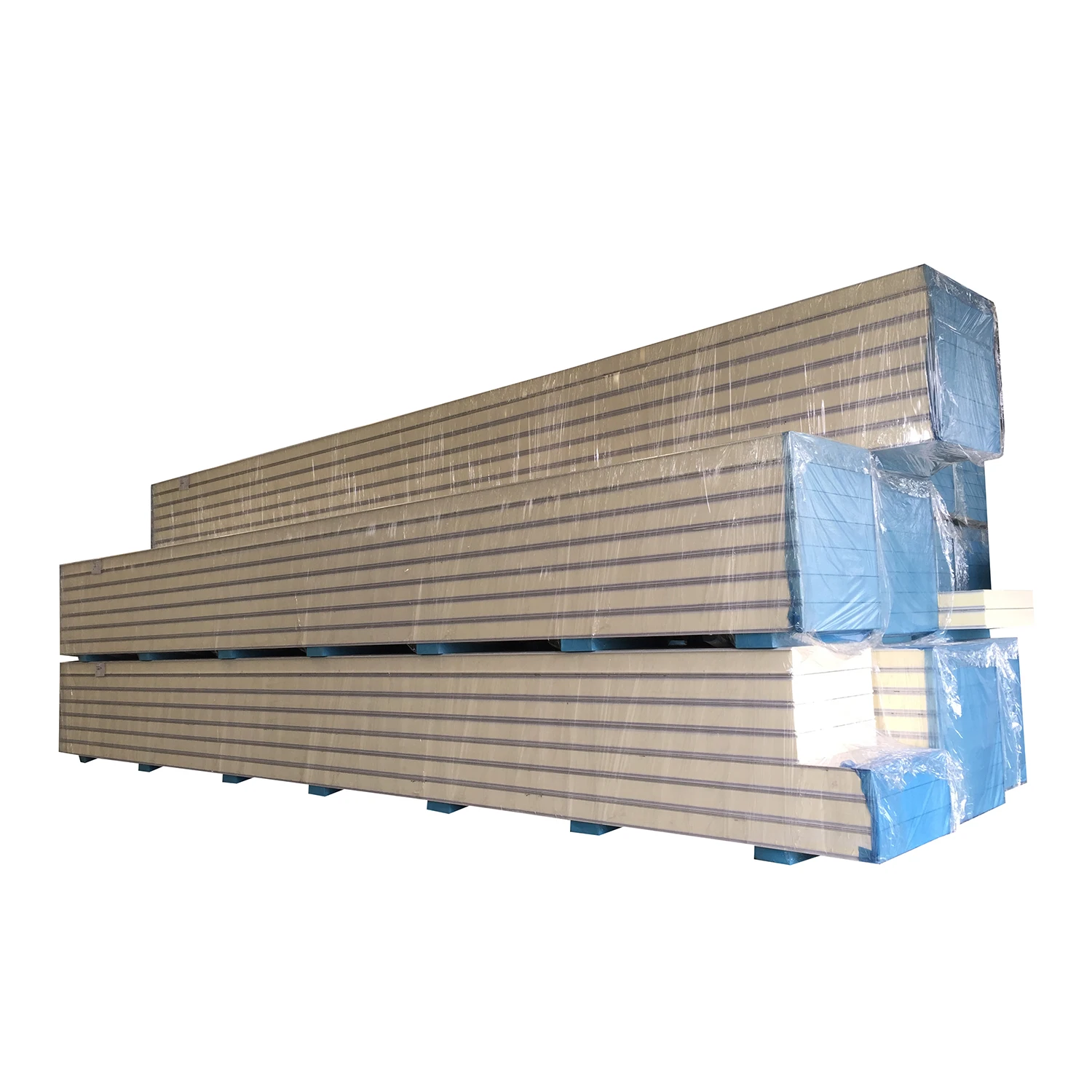

PUR Panel

1) Surface steel : there have 3 types for your reference : PPGI / Stainless steel / Aluminum
2) Thickness(mm): 0.5~1.5mm
3) Width: 960-980mm by 1180mm (or can be customized)
4) Density : 42-44kg/m3
5) Thickness(mm): 50/75/100/120/150/200mm
6) Fireproof : B2/B1 as you want

Hinged door

Surface material: Atainless steel/Galvanized steel/Embossing aluminum.

Thickness: 50/75/100/120/150/200mm.

Sliding door

Surface material: Atainless steel/Galvanized steel/Embossing aluminum.
Thickness: 50/75/100/120/150/200mm.

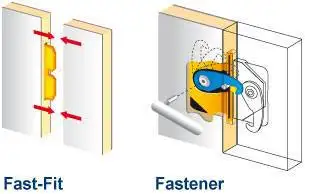

Panel connection method: dry connection system with cam lock, the two flat panels are between male and female, the panels are connected by connecting tools. And the refrigerator should also be installed in a cool place away from direct sunlight, dust and rain.

SUCCESSFUL PROJECT

Cold room cold storage advantage

1. Good fire prevention performance and not melting when burning 2. Wide temperature application range, small contractility even in low temp environment and non fragile. 3. Nontoxic and inodorous, in accord with the state environmental protection requirements cold room cold storage panels thickness usually made according to the room temp, and the sized can be customized.

Food factory cold room

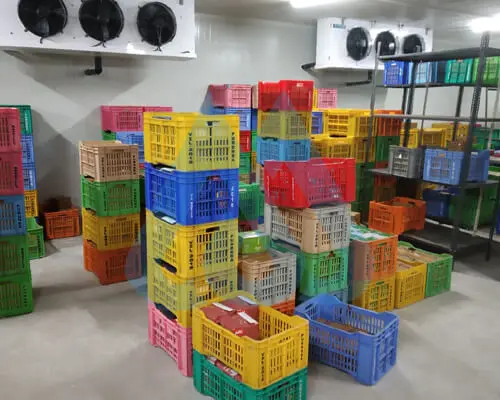

(1).Vegetable, Fruit Cooler (0-5'C)

Mobile cold room for sale

(2).Drinks, Beer Walk in Cooler (2-8'C)

Logistic cold storage

(3).Meat, Fish Storage Freezer (-18'C)

Project in Australia

(4). Storage Cooler (2-8'C)

Project in Italy

(5).Storage Freezer (-20'C)

Project in Philippines

(6).Meat, Fish Blast Freezer (-35'C)
