Engineers, procurement teams, and seasoned contractors often treat the words "pipe" and "tube" as exact synonyms. However, relying on this casual habit creates serious business risks. Procuring the wrong profile easily leads to catastrophic structural failures. It can cause mismatched fittings on the assembly line. It might even trigger severe budget overruns because you paid for unnecessary precision. We wrote this guide to provide a definitive, technical breakdown of the differences in sizing, application, and manufacturing. You will discover exactly how these two materials diverge. We will guide you toward specifying the right materials. We will also explore the exact production solutions needed to keep your operations running smoothly and efficiently.
Function: Pipes are vessels for transferring fluids and gases; tubes are structural components designed for load-bearing and exact assemblies.
Sizing: Pipe uses Nominal Pipe Size (NPS) and Schedule (rough inner capacity); Tube is measured by exact Outer Diameter (OD) and Wall Thickness (WT).
Manufacturing: Tubes require significantly tighter tolerances, demanding advanced Steel Tube Making Equipment and more rigorous quality control than standard pipes.
Procurement Rule: When ordering tubes, buyers must specify only two of three dimensions (OD, ID, or WT) to account for manufacturing realities.
Pipes are exclusively round. You will never see a square pipe used in a functional plumbing system. Fluid dynamics provide the specific reason for this limitation. A round shape prevents internal pressure from concentrating at specific corners. This physical reality makes a cylindrical shape ideal for transferring high-pressure fluids, volatile gases, and heavy powders.
When engineers evaluate pipe, their primary focus revolves around capacity and yield strength. Yield strength dictates how much internal pressure the vessel can handle before it permanently deforms. Because the main goal is moving volume safely from point A to point B, exact exterior dimensions matter far less than the internal flow capacity.
Tubes are purpose-built for structural integrity. You will find them in mechanical applications and highly precise instrumentation. Common examples include hospital medical devices, construction scaffolding, and automotive chassis components. Because they do not handle internal fluid pressure, they are free from fluid dynamic constraints.
As a result, tubes can be manufactured in round, square, rectangular, or even oval shapes. When evaluating structural tubing, engineers prioritize tensile strength and rigidity. They need to know how much load the component can bear before it snaps or bends. The focus shifts entirely from internal capacity to external structural performance.
Understanding pipe measurements requires breaking down the Nominal Pipe Size (NPS) standard. Many buyers fall into the trap of assuming NPS represents an exact physical measurement. It does not. NPS is purely a standardized designation used across the industry.
Historically, NPS was tied closely to the actual inner diameter (ID) of the pipe. However, as steel manufacturing improved, walls became thinner while retaining the same strength. To keep existing standardized fittings compatible, the outer diameter (OD) remained locked, while the ID fluctuated based on wall thickness. Therefore, the NPS today rarely matches actual physical dimensions for common sizes.
The 12-Inch Rule
Industry standards mandate a specific engineering reality known as the 12-inch rule. For any pipe sized between NPS 1/8” and NPS 12”, the standardized OD does not match the nominal size. For example, a 2-inch NPS pipe actually has an outer diameter of 2.375 inches.
Only at NPS 14” and above do the outer diameter and nominal size finally align perfectly. A 14-inch NPS pipe measures exactly 14 inches across the outside. Additionally, buyers must specify the "Schedule" when ordering pipe. The Schedule (such as Sch 40 or Sch 80) dictates the specific wall thickness. A higher Schedule number indicates a thicker wall, which directly increases the maximum pressure rating (PSI).
Tubing abandons the confusing nominal system entirely. Instead, it relies on absolute precision. You measure structural tubing by its exact Outer Diameter (OD) and its exact Wall Thickness (WT).
This exactness provides crucial predictability for manufacturing. A 2-inch tube measures exactly 2 inches across the outside. If you need to slide a 2-inch tube into a slightly larger sleeve for a mechanical assembly, you can trust the measurement. This precise standard enables the seamless integration of tubing with other engineered parts on a complex assembly line.
Before purchasing metal profiles, buyers must evaluate their project needs across five strict dimensions. The differences between pipe and tube become starkly apparent when compared side-by-side.
Evaluation Dimension | Standard Pipe Characteristics | Standard Tube Characteristics |
|---|---|---|
Shape Limitations | Strictly cylindrical. | Multifaceted (Round, square, rectangular, oval). |
Manufacturing Tolerances | Generous dimensional "wiggle room". | Extreme microscopic precision (often +/- 0.04 inches). |
Material Processing | Hot-rolled carbon or low-alloy steel. | Hot-rolled or cold-rolled mild carbon, brass, aluminum. |
Rigidity & Formability | Inherently rigid, difficult to bend post-production. | Highly formable, easy to bend, coil, or shape. |
Telescoping Ability | Physical impossibility due to loose tolerances. | Excellent nesting and telescoping capabilities. |
Shape Limitations: Pipe is strictly cylindrical to distribute internal pressure. Tube offers multifaceted geometries, allowing architects and engineers to select square or rectangular profiles for flush structural framing.
Manufacturing Tolerances: Pipe allows for dimensional "wiggle room". Because the fluid inside does not care about a millimeter of variance, the exterior can be slightly uneven. Tube demands extreme microscopic precision. Critical environments require tolerances often held within +/- 0.04 inches.
Material & Processing: Pipe utilizes mostly hot-rolled carbon steel or low-alloy steel. These materials are optimized heavily for yield strength. Tube is widely available in both hot-rolled and cold-rolled formats. You will find tube made from mild carbon steel, brass, aluminum, and specialized alloys optimized for tensile strength and surface hardness.
Rigidity & Formability: Pipe is inherently rigid. It resists deformation, making it difficult to shape or bend post-production without specialized heat treatments. Tubing is designed specifically to be shaped. You can bend, flare, or coil structural tubing without wrinkling the inner radius or fracturing the outer curve.
Telescoping: Tubing possesses a unique ability to be nested or telescoped. Because the OD and ID are so precisely controlled, a smaller tube can slide perfectly into a larger one. This modular assembly feature is a physical impossibility for standard pipes.
Both profiles undergo distinct manufacturing processes depending on their intended use. The two primary methods are Seamless extrusion and Electric Resistance Welding (ERW).
You can visualize seamless manufacturing as piercing a solid, heated cylinder of steel. Imagine pushing a firm rod straight through the center of a dense block of clay. This creates a continuous profile with no weak points. Conversely, you can visualize welded manufacturing as rolling a flat strip of steel into a circle. The two edges meet and fuse together via high-frequency electrical currents. Welded production is faster, while seamless production yields higher baseline strength.
Tubing generally costs more to produce than standard piping. The reasons for this price gap stem directly from the demands of structural engineering. The tighter tolerances required for tubes slow down the production cycle significantly. Machines must be calibrated constantly.
Furthermore, producing complex geometries like square or rectangular profiles requires additional shaping steps. Facilities must implement extensive non-destructive testing to verify exact dimensions. These rigorous inspection requirements inevitably demand higher labor inputs and specialized tooling.

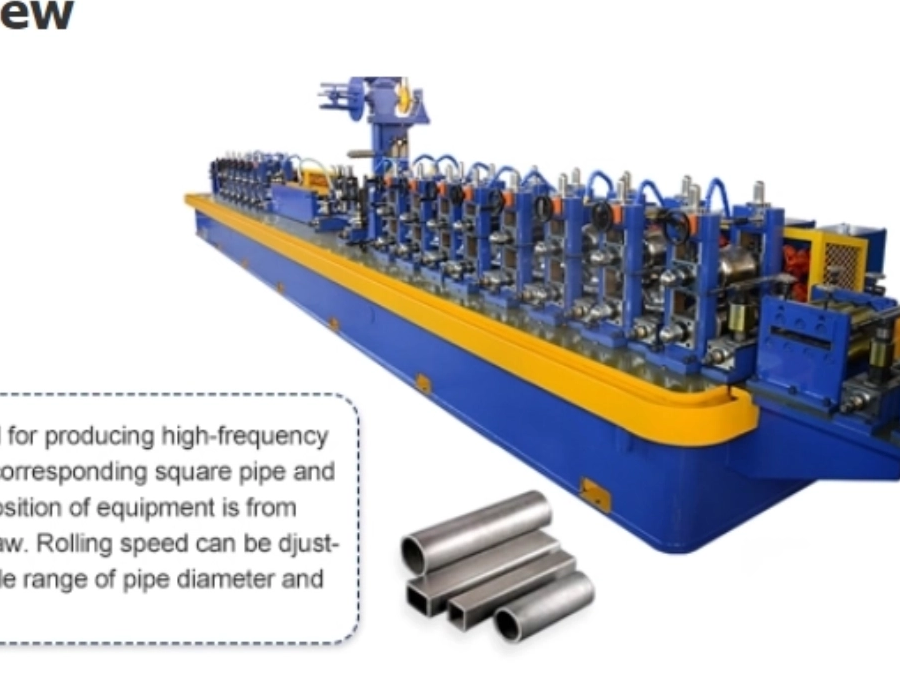

For high-volume manufacturers, relying continually on wholesale purchasing limits long-term scalability. Buying pre-cut profiles eats into profit margins over time. Investing in modern, in-house Steel Tube Making Equipment changes this dynamic completely.
Bringing production inside your facility allows you to tightly control OD tolerances. You can customize unique shapes specifically for your proprietary structural applications. By reducing reliance on external suppliers and eliminating markups, this equipment ultimately drives down your long-term unit costs and secures your supply chain.
Buyers frequently make a critical B2B ordering mistake when purchasing structural materials. They attempt to specify exact requirements for all three geometric dimensions: Outer Diameter (OD), Inner Diameter (ID), and Wall Thickness (WT).
You must understand the "Rule of Three" in tube procurement. There are three dimensions, but buyers can only dictate tight tolerances for two of them at any given time. Physical manufacturing limits dictate this rule. If you specify the OD and the WT exactly, the ID simply becomes whatever is left over. The third dimension must remain a "theoretical" value to account for normal steel variations during production.
You need to audit your current project needs carefully before drafting a purchase order.
If fluid transfer, internal pressure, and sheer volume capacity are your primary concerns, you must spec pipe using the standard NPS system.
If your project requires extreme structural precision, modular nesting capabilities, and an exact outer diameter, you must spec tube.
Choose your two non-negotiable dimensions (usually OD and WT for structural components) and leave the third dimension theoretical.
While they might look identical at a quick glance, standard pipe and structural tube serve entirely distinct purposes in the industrial world. Pipe is built essentially to move volume safely under pressure. Tube is built to bear loads, nest flawlessly, and build the physical world around us.
To move forward effectively, keep these final action-oriented takeaways in mind:
Stop using the terms interchangeably on engineering drawings and procurement orders.
Audit your material usage to ensure you are not overpaying for microscopic tolerances on fluid transfer lines.
Apply the "Rule of Three" strictly when ordering precise structural components.
We recommend directing your procurement team to consult with a fabrication specialist today. If your volume requirements are scaling rapidly, evaluate your facility's need for dedicated production lines and specialized tooling to capture long-term cost efficiencies.
A: Tube generally offers higher structural and tensile strength, making it ideal for load-bearing frameworks. Pipe excels primarily in yield strength, allowing it to contain intense internal fluid pressure safely.
A: Yes, you can use pipe for support, but it is heavier and far less precise. It also lacks the telescoping capabilities and aesthetic geometries (like square profiles) found in structural tubing.
A: Pipe is exclusively round to evenly distribute internal pressure from fluids and gases. A round shape prevents stress fractures at corners, which would inevitably fail under high-pressure flow.
