When you leave the shore behind, you leave behind the convenience of the power grid. For anyone spending extended time on a boat, a marine generator is the most critical piece of equipment for comfort and safety. It acts as a dedicated on-board power station, converting fuel into the electricity needed to run air conditioners, kitchen appliances, navigation systems, and water makers. Unlike a standard land-based unit, it must survive one of the harshest environments on Earth: the saltwater ocean.
Understanding exactly what a marine generator is requires looking past a simple engine and alternator. It is a specialized machine designed for high-humidity, high-corrosion, and limited-space conditions. Whether you are looking for a Small portable unit for weekend fishing or a Heavy duty diesel system for a world-circling yacht, this guide explores the technical DNA of these machines. We will dive into the mechanics, the cooling systems, and the innovations that keep your lights on when the land is out of sight.

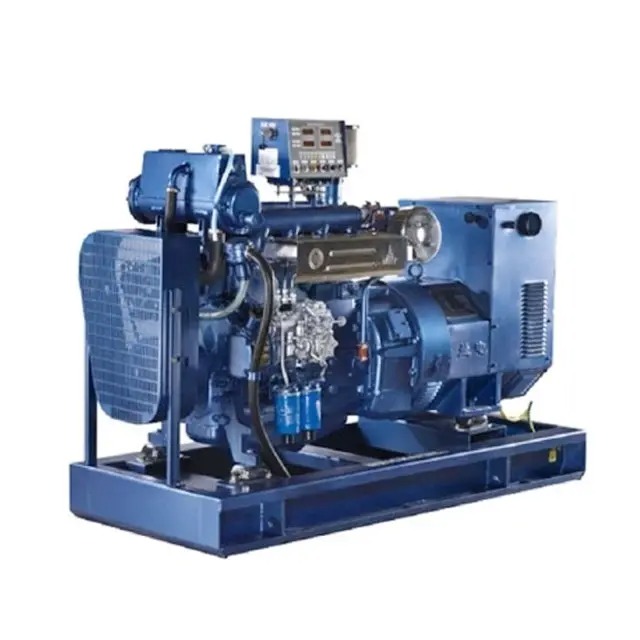

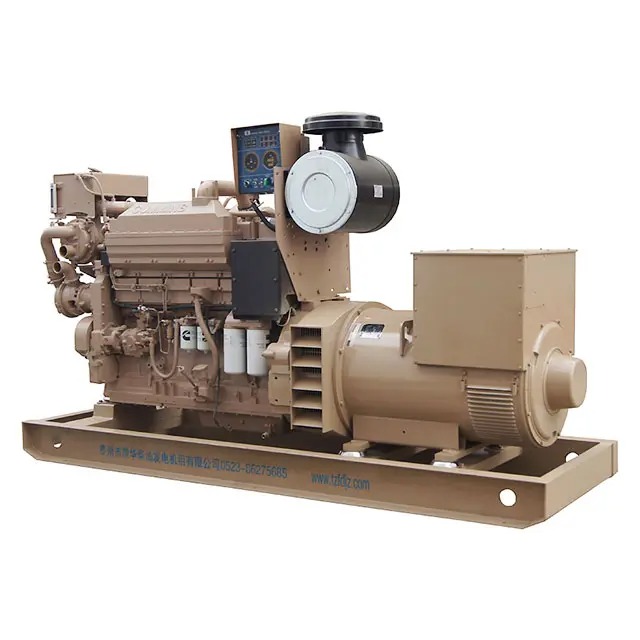

At its simplest level, a marine generator consists of an internal combustion engine coupled to an alternator. However, the "marine" prefix changes everything about its construction. It must be Compact enough to fit into tight engine rooms while being robust enough to handle constant vibration and pitching waves.
The biggest enemy of any metal on a boat is salt. A High-quality marine generator uses specialized materials like Cupronickel (copper-nickel) for heat exchangers and stainless steel for hardware. The windings in the alternator are often coated with an extra layer of epoxy resin to prevent salt air from causing a short circuit. Standard generators use aluminum that pits and corrodes quickly; a marine generator is built to withstand the "salt spray" test for thousands of hours.
Safety is paramount when you are sitting on top of a fuel tank. Gasoline versions of these units must be "ignition protected." This means they are designed so that any internal spark cannot ignite fuel vapors in the engine compartment. Diesel units are naturally safer due to the higher flashpoint of the fuel, which is why they are the industry standard for Heavy duty offshore applications.
On land, a generator simply blows air over its engine to stay cool. On a boat, air is limited, and the engine room is already hot. Therefore, a marine generator uses water to carry heat away. This is a defining characteristic that procurement officers and boat owners must understand.
Most modern units use a "closed-loop" cooling system. Fresh water (coolant) circulates through the engine block, just like in a car. This hot coolant then passes through a heat exchanger where "raw water" (the ocean water pulled from under the boat) flows through a separate set of tubes. The ocean water picks up the heat and is then pumped overboard through the exhaust.
By injecting the used cooling water into the exhaust line, we achieve two things. First, it significantly cools the exhaust gases, preventing fire hazards in the hull. Second, it acts as a natural muffler. This "wet exhaust" system is a major reason why a modern marine generator is so much more Quiet than a loud, air-cooled portable unit sitting on a deck. It turns a roaring engine into a gentle splashing sound.
When choosing a marine generator, the operating speed determines its lifespan and noise level. In the maritime world, we generally categorize these units by their Revolutions Per Minute (RPM).
A Low RPM generator typically runs at 1,500 RPM (for 50Hz) or 1,800 RPM (for 60Hz). Because the engine turns more slowly, it experiences less friction and heat. These are usually Heavy duty diesel engines designed for commercial vessels or luxury motor yachts. They can run for tens of thousands of hours with basic maintenance. They offer a deep, bass-heavy sound that is easy to ignore while sleeping.
Conversely, smaller boats might use a 3,600 RPM unit. These are more Compact and lighter, making them easier to install on a 30-foot cruiser. However, the latest innovation is the Inverter marine generator.
Variable Speed: It doesn't have to run at a fixed speed. It adjusts its RPM based on the electrical load.
Pure Sine Wave: The Inverter technology cleans the power, making it safe for sensitive laptops and 4K televisions.
Fuel Savings: If you are only charging batteries, the engine drops to a whisper, saving significant fuel over a week of cruising.
The "best" marine generator depends entirely on your vessel's size and your power "budget." We can break the market into three distinct segments based on their functional attributes.
For the day-tripper, a Small portable unit might be enough. While technically these are often land-based units used on a swim platform, some manufacturers make "marined" versions. They are easy to move but require careful storage to avoid salt damage. They are best for occasionally running a small microwave or a battery charger.
Mid-sized boats (35 to 50 feet) require a Compact permanently installed unit. These are often housed in a "sound shield"—a white fiberglass box that traps noise. These units are designed to run an air conditioner and a water heater simultaneously. They prioritize space efficiency, often featuring a "pancake" style alternator to save height in the bilge.
Commercial fishing boats and large yachts rely on Heavy duty diesel power. These are built on industrial engine blocks (like Kubota or Yanmar). They are designed for 24/7 operation. Reliability is the only metric that matters here; if the marine generator fails in the middle of the ocean, the crew loses their navigation and refrigeration.
| Feature | Small portable | Compact Inverter | Heavy duty Diesel |
| Primary Fuel | Gasoline | Gasoline/Diesel | Diesel |
| Typical RPM | 3,600+ | Variable | Low RPM (1,800) |
| Noise Level | Moderate | Quiet | Very Quiet (with shield) |
| Weight | Lightest | Medium | Heaviest |
| Lifespan | 500-1,000 hrs | 2,000-5,000 hrs | 10,000+ hrs |
The Inverter marine generator is perhaps the most significant advancement in the last decade. It solves the classic "efficiency vs. weight" problem that has plagued boaters for years.
Traditional generators must run at a fixed speed to maintain a steady 60Hz frequency. Even if you are only running one lightbulb, the engine screams at 1,800 or 3,600 RPM. An Inverter unit uncouples engine speed from the electrical output. It produces DC power first, then converts it back to perfect AC. If the load is low, the engine throttles down to an idle. This makes the unit incredibly Quiet during the night.
Modern boats are floating computers. GPS, Radar, and Satellite Internet are sensitive to "dirty" power (voltage spikes). The Inverter process ensures a High-quality sine wave that is often cleaner than the power you get from your house. This prevents the "blue screen of death" on your navigation displays and extends the life of your expensive galley appliances.
You cannot simply drop a marine generator into a hull and start it. The installation is a complex engineering task that involves four major systems: fuel, exhaust, cooling, and electrical.
Because a marine generator sits below the waterline, there is a risk that water could siphoning back through the exhaust and drown the engine. Every professional installation includes a "syphon break" or "anti-syphon valve." It is a simple U-shaped tube with a small valve at the top that breaks the vacuum when the engine stops. If this small part fails, the entire marine generator can be ruined by seawater in minutes.
To keep the boat Quiet, the unit is mounted on "vibration isolators"—soft rubber feet that soak up the engine's shaking. Additionally, the electrical connection to the boat's main panel must include a "transfer switch." This prevents the generator from back-feeding power into the shore power cord, which could be deadly for a dock worker.
If you treat a marine generator like a car engine, it will fail. The marine environment requires a specific preventative maintenance schedule focused on the cooling and fuel systems.
Zinc Anode Replacement: Inside the heat exchanger, "sacrificial zincs" are used. The salt water eats the zinc instead of eating the copper tubes. These must be checked every 3 months.
Impeller Changes: The rubber pump that pulls in ocean water is a wear item. If a single blade breaks off, the unit will overheat in seconds.
Fuel Polishing: Boats often sit for months. Fuel can grow algae or collect water. A Heavy duty installation always includes a high-grade fuel-water separator (like a Racor filter) to protect the precision injectors.
The debate between fuel types is often decided by the boat's main engines. However, for a marine generator, the choice has massive implications for safety and range.
Diesel is the gold standard. It does not explode. You can safely run a diesel marine generator while the boat is underway or at anchor without the same fear of carbon monoxide (CO) poisoning associated with older gasoline units. Diesel is also more energy-dense, meaning you get more "hours per gallon."
If you own a gasoline-powered sportboat, you likely don't want a separate diesel tank for your generator. Modern gasoline Compact units have improved significantly. They now feature "Low CO" technology that reduces the risk of toxic fumes. However, they still require more frequent maintenance of the spark plugs and ignition systems compared to their diesel counterparts.
So, what is a marine generator? It is the heartbeat of a self-sufficient vessel. It is a specialized, water-cooled, corrosion-resistant machine that turns a fiberglass shell into a comfortable home. Whether you choose a Small portable unit for light tasks or a Low RPM, Heavy duty diesel system for a commercial ship, the goal is the same: reliable power in an unreliable environment. By prioritizing High-quality materials and the latest Inverter technology, you ensure that your time on the water is defined by relaxation, not mechanical failure.
Q: Can I use a regular "land" generator on my boat?
A: We strongly advise against it. Land generators lack the water-cooling, ignition protection, and corrosion-resistant parts required for sea life. They are louder, dangerous in enclosed spaces, and will likely rust through within a single season.
Q: How many kilowatts (kW) do I need?
A: You must calculate your "peak load." Add up the wattage of your air conditioner, water heater, and stove. A typical 40-foot boat usually needs a 5kW to 8kW marine generator to run everything comfortably.
Q: Why is my marine generator blowing white smoke?
A: White smoke is often steam. This suggests that the "raw water" flow is restricted. Check your sea strainer for weeds or check your pump impeller for damage. If the engine isn't getting enough water to cool the exhaust, the remaining water turns to steam.
