Procuring industrial extrusion equipment requires a delicate balance. You must weigh high upfront capital expenditure against long-term production versatility. Selecting the wrong press configuration often leads to excessive tooling wear. It can also restrict product dimensions and create crippling maintenance bottlenecks. These errors disrupt supply chains and erode profit margins.
Decision-makers must look far beyond baseline tonnage when evaluating an Aluminium Extrusion Press. The choice between direct, indirect, and specialized configurations fundamentally alters your shop floor dynamics. Your chosen technology dictates necessary billet preparation steps. It defines your die lifecycle expectations and establishes your maximum extrusion ratio.
This guide breaks down extrusion press types by mechanical operation, physical orientation, and tonnage capacity. We explore the nuanced trade-offs behind each machinery class. Engineering and procurement teams can use these insights to confidently shortlist the exact specifications required for their unique product mix.
Direct vs. Indirect: Direct presses offer unmatched versatility for complex profiles, while indirect presses reduce friction by up to 30% but demand stringent, costly billet surface preparation.
Orientation Trade-offs: Horizontal presses dominate the market due to ease of handling for long profiles, but vertical presses offer superior concentricity for specialized tube manufacturing.
Tonnage Dictates Market Reach: Press capacities range from <1,000 tons for architectural trims to >10,000 tons for aerospace components; over-specifying tonnage exponentially increases foundation and hydraulic overhead costs.
Die Complexity Matters: Extrusion success isn't just about the press. High "Tongue Ratio" profiles require presses capable of highly stabilized, uniform pressure distribution to prevent catastrophic H-13 steel die failure.
Engineers primarily categorize standard presses by the direction of metal flow relative to the ram. This foundational mechanical difference dictates friction levels, tooling wear, and end-product quality.
Direct extrusion represents the dominant industry standard. The mechanical concept is straightforward. A powerful hydraulic ram pushes the heated metal billet directly through a stationary die. The metal flows forward in the same direction as the ram.
This implementation carries a harsh operational reality. The heated billet aggressively rubs against the container walls during the stroke. This generates immense sliding friction. Operators must overcome a massive initial "breakthrough pressure" to initiate metal flow. The required force peaks early, drops as the billet shortens, and spikes again at the end of the stroke as metal flows radially.
Despite these friction challenges, direct presses dominate the market. They easily produce highly complex, multi-cavity cross-sections. They support rapid die changes and accommodate diverse alloy grades with minimal pre-treatment.
Indirect extrusion flips the mechanical script. The die mounts onto a hollow ram stem. This entire assembly moves forward into a stationary billet. The metal flows backward through the hollow stem, traveling in the opposite direction of the tooling.
This approach delivers incredible evidence-oriented benefits. The billet never slides against the container walls. This complete elimination of billet-to-container friction reduces the required press load by 25–30%. It lowers operational temperatures and yields a remarkably uniform grain structure across the extruded profile.
However, adoption carries significant risks. Indirect presses are notoriously sensitive to billet surface impurities. Operators must heavily invest in pre-extrusion chemical washing. Alternatively, they must "scalp" (peel) the billet to remove oxidized surface dirt. Without this, impurities flow directly into the extrusion surface. Additionally, the size of the hollow support stem strictly limits the maximum cross-sectional area of your final product.
Feature | Direct Extrusion | Indirect Extrusion |
|---|---|---|
Friction Levels | Extremely high (billet rubs container) | Virtually zero (stationary billet) |
Force Required | High initial breakthrough pressure | 25–30% lower pressure requirement |
Profile Complexity | Unlimited (supports complex/hollow shapes) | Restricted by hollow stem diameter |
Billet Preparation | Standard pre-heating | Requires intensive scalping or chemical wash |
Standard hydraulic rams handle most commercial profiles. However, niche applications demand extreme extrusion ratios or operate under severe geometric limitations. Specialized presses fill these critical manufacturing gaps.
Hydrostatic systems utilize a pressurized fluid medium to transmit force. Operators often use specialized castor oil variants. The fluid completely surrounds the billet inside the container. The ram pressurizes the fluid rather than touching the metal directly.
This creates a true "zero friction" environment. The fluid lubricates the die continuously. These presses achieve ultra-high pressures, sometimes exceeding 1,700 MPa. They easily process exceptionally brittle aluminium alloys. Engineers specify hydrostatic presses when targeting extreme extrusion ratios. You can achieve ratios up to 200:1 without causing structural tearing or surface cracking.
The scalability risks are severe. Containing liquids at 1,700 MPa requires massive structural integrity. Leakage prevention systems add staggering complexity. Consequently, these machines cost significantly more to purchase and maintain at scale.
Impact presses function completely differently from continuous profile machines. They utilize a high-velocity, short-stroke punch. This triggers near-instantaneous deformation. Facilities normally run impact presses using cold or warm extrusion techniques.
The punch strikes a small metal slug placed inside a shallow die. The metal flashes upward around the punch. This instantly forms shallow, thin-walled components. Manufacturers deploy this technology for high-volume closed-end items. Common use cases include aerosol cans, automotive airbag cylinders, and thick-bottomed pressure vessels. They do not manufacture continuous linear profiles.
Matching the physical footprint of the press to your facility is critical. You must also align the gravitational realities of the equipment with your final product type.

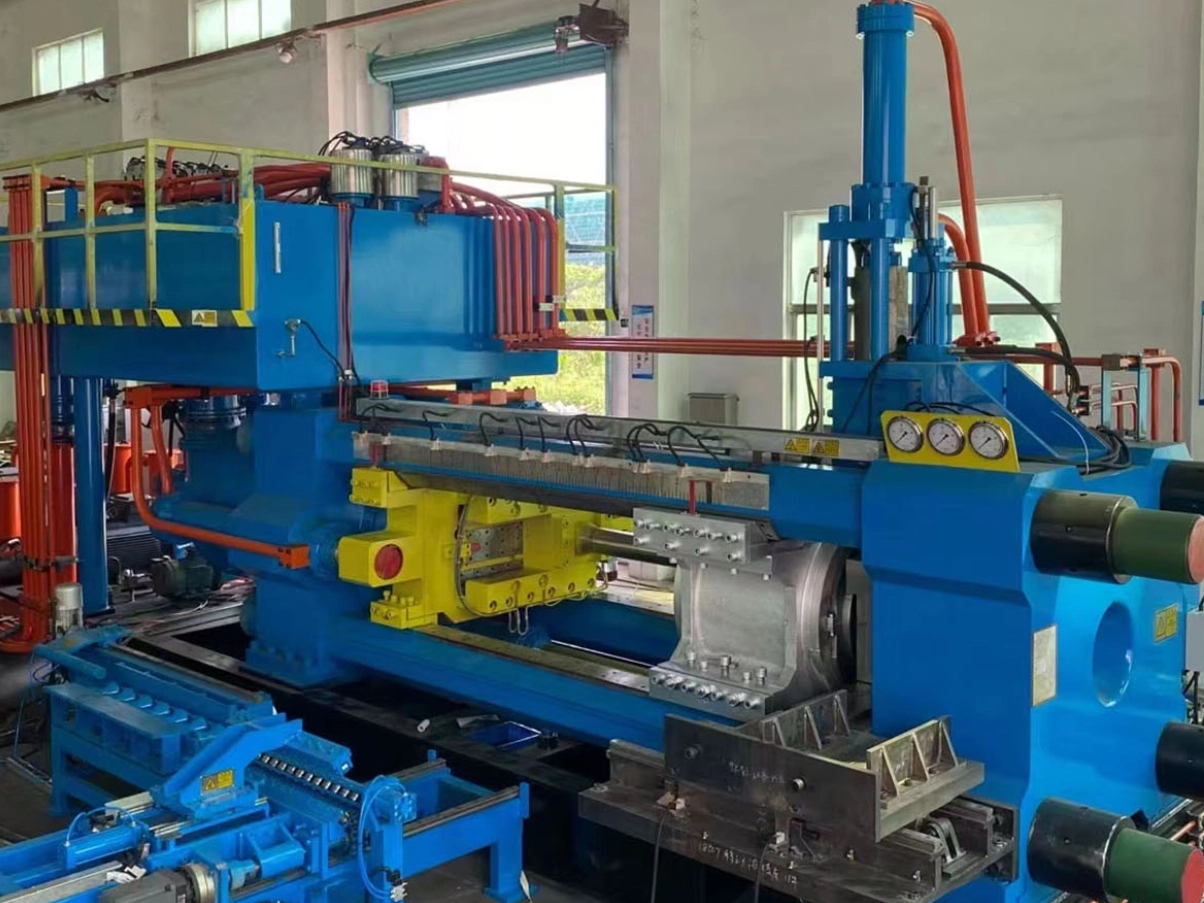

Horizontal machines represent the default industrial configuration. The ram, container, and die align parallel to the factory floor. They are universally applied for standard architectural and structural profiles. If you produce long window rods, structural bars, or industrial channels, you need a horizontal setup.
The implementation reality demands immense floor space. You must accommodate the main hydraulic cylinders and the heating furnace. Most importantly, you need a sprawling runout table to support 50-meter-long extruded profiles as they cool. Over long operational lifespans, gravity pulls downward on the horizontal ram and billet. This causes minor deflection. Maintenance teams must perform routine laser alignments to prevent uneven die wear.
Vertical presses stand upright. The ram pushes the metal straight down toward the floor. Facilities primarily reserve this setup for thin-walled tubes and highly concentric hollow profiles.
This orientation entirely eliminates gravitational sag. Because gravity acts parallel to the metal flow, the tooling stays perfectly centered. This ensures perfectly symmetrical wall thickness around the entire circumference of a tube.
Adoption carries steep logistical risks. Maintenance access becomes notoriously difficult. Facility managers must install heavy-duty overhead crane infrastructure to service the upper hydraulic cylinders. Furthermore, you must engineer complex hydraulic pits deep below the factory floor to handle the extruded material runout.
Aligning hydraulic pressing force with your target end-market prevents capital waste. Tonnage dictates exactly what profiles you can push through the die. When sizing an Aluminium Extrusion Press, over-specifying force dramatically inflates your upfront investment.
Small-Scale Presses (<1,000 Tons): These nimble machines dominate the light commercial sector. Operators use them for window and door frames. They manufacture LED heat sinks and lightweight consumer electronics housings. They operate at lower baseline pressures. Tooling usually involves simple solid dies. They offer rapid cycle times and low energy overhead.
Mid-Range Industrial Presses (1,000 – 5,000 Tons): This represents the commercial "sweet spot". Standard automotive crash management systems require this power bracket. It also handles heavy industrial piping and robust construction beams. Commercial toll extruders rely on this tier. It perfectly balances profile flexibility with raw pushing power.
Heavy and Ultra-Large Presses (5,000 – 10,000+ Tons): Only specialized manufacturers step into this arena. Applications include massive EV battery enclosures, railcar body panels, and structural aerospace components. Implementation requires massive infrastructural investments. You must pour reinforced concrete foundations. You need specialized high-pressure hydraulic manifolds. Advanced PLC control systems become mandatory to manage extreme thermal dynamics during the lengthy extrusion cycle.
Tonnage Range | Primary Applications | Die & Control Requirements |
|---|---|---|
<1,000 Tons | Window/door frames, LED heat sinks | Simple solid dies, basic cooling |
1,000 – 5,000 Tons | Automotive crash systems, pipes, beams | Complex hollow dies, stable pressure control |
5,000 – 10,000+ Tons | EV enclosures, aerospace structures, railcars | Highly advanced PLCs, massive thermal management |
A press is only as capable as the tooling it supports. Over-estimating press capability while ignoring complex die mechanics inevitably leads to high scrap rates and broken tooling.
Solid dies push solid shapes. Bars, rods, and basic angles flow easily. Hollow profiles demand far more effort. To create a tube, the aluminium must physically split around an internal mandrel. It flows into a weld chamber. The immense pressure then fuses the split metal back together perfectly before it exits the die.
This process requires a press capable of highly stable, sustained pressure. Reaching 100,000+ psi of thrust inside the weld chamber ensures a flawless, invisible weld seam. If your press pressure fluctuates, the hollow profile will split upon cooling.
Expert die makers constantly evaluate the "Tongue Ratio". This metric compares the area of the void being extruded against the base thickness of the die tongue. It dictates structural fragility.
High tongue-ratio profiles feature deep, narrow channels. These channels put tremendous bending stress on the die tongue. Presses running high tongue-ratio profiles require highly precise speed controls. Operators must utilize low-speed settings, often dropping to 0.1-1m/min. Pushing faster causes localized heat buildup. The H-13 tool steel softens, bends, and snaps. Catastrophic die failure shuts down production entirely. You must ensure your press features servo-hydraulic valves capable of micro-speed adjustments.
Shortlisting Logic: Base your primary equipment decision squarely on the desired end-product geometry. If you produce diverse, complex structural profiles, a standard horizontal direct press in the 2,000–4,000 ton range provides the best operational return on investment.
Evaluate Specialized Needs: For highly specialized, high-strength alloys demanding incredibly tight tolerances, evaluate the operational viability of an indirect press. Remember to factor in the absolute necessity for secondary billet pre-treatment facilities.
Next Steps: Conduct a thorough audit of your facility's power and foundation infrastructure. Outline your primary alloy constraints clearly (such as 6000-series versus harder 7000-series metals). Finally, request a comprehensive tonnage-to-extrusion-ratio matrix from prospective equipment manufacturers to guarantee long-term alignment.
A: No. While it drastically reduces friction and internal equipment wear, indirect extrusion severely limits the complexity of the cross-section. This happens because the die mounts directly on the support stem, limiting the profile area. Direct extrusion easily handles intricate hollow shapes and remains the overwhelming industry preference for custom profiles.
A: Hot extrusion presses heat the metal above its recrystallization temperature. For aluminium, this typically hits 300°C–600°C. This prevents work hardening and allows massive shape deformation. Cold extrusion operates at room temperature. It offers excellent surface finishes and increases material strength through strain hardening. However, cold extrusion is strictly limited to simpler shapes and requires specialized phosphate lubrication.
A: No. Plastic extruders use single or twin rotating screws to melt, mix, and continuously pump polymers. Metal extrusion presses utilize high-pressure hydraulic rams to crush a solid, pre-heated metal billet through a steel die. They rely entirely on immense compressive force rather than mechanical mixing to form the final profile.
