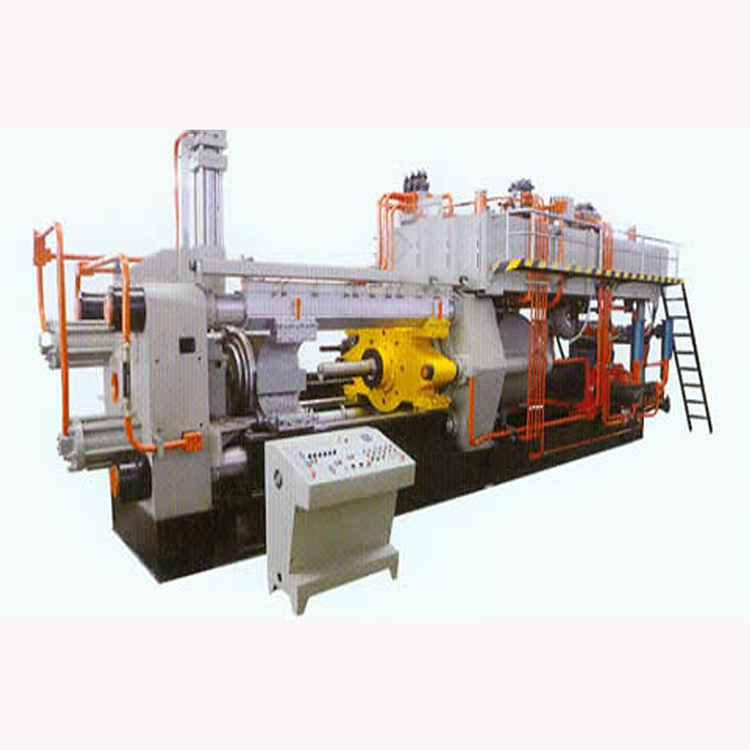

As a leading manufacturer and direct supplier, we engineered this 1800MT horizontal aluminium extrusion press to redefine heavy-duty metal forming.
Designed for high-yield facilities, it transforms raw billets into flawless profiles with unyielding precision.
Direct from the manufacturer for optimal cost-efficiency and direct technical accountability.
Engineered by a trusted supplier for continuous, heavy industrial operation.
Utilizes a forward extrusion methodology for superior structural integrity.
Built for massive manufacturing scale without compromising microscopic accuracy.
The technical specifications of this extrusion machinery reflect a meticulous balance between raw mechanical power and refined operational geometry. Every measurement, from the substantial thickness of the platen to the precise diameter of the tension columns, has been calculated to maximize structural rigidity under extreme hydraulic loads. These parameters are not just numbers; they represent the exact capabilities your facility can rely on to calculate throughput, plan floor space, and engineer complex dies. Review the exact operational metrics below to understand how this equipment will integrate into your heavy industrial workflow.
| Technical Parameter | Specification |
|---|---|
| Extrusion pressure | 1822T |
| Working pressure of hydraulic system | 23Mpa |
| Dimension of aluminum rod | Φ178×900mm |
| Overall dimensions (L×W×H) | 11000×4500×4500 mm |
| Central height | 1150mm |
| Mould dimension | Φ300×300mm |
| Thickness of platen | 700mm |
| Tension column | Φ270mm, 40Cr forged steel |
| Exit dimension | Φ230×300mm |
| Extrusion speed | 0~18mm/s |
| Dead Cycle | 8s |
| Control System | PLC and touch screen |
Achieving consistent profitability in metal forming requires machinery that minimizes downtime while maximizing output quality. This horizontal single-action press is engineered to be the beating heart of your production facility, offering a suite of operational advantages that directly translate to an optimized bottom line. The integration of mechanical brawn with digital intelligence ensures that every extrusion cycle is as perfect as the last.
Flawless Surface Finish: The ultra-smooth hydraulic delivery prevents the "chatter" marks often seen in lesser machines, yielding profiles with a mirror-like, premium touch right out of the die.
Unyielding Structural Rigidity: Built with a massive 700mm thick platen, the machine resists deflection even at peak tonnage, ensuring your complex geometric profiles maintain strict dimensional tolerances.
Intuitive Operator Interface: By centralizing command through a highly responsive touch screen, floor technicians can monitor pressure curves and adjust speeds instantly, reducing the learning curve and preventing costly human errors.
Accelerated Cycle Recovery: The optimized hydraulic fluid pathways allow the ram to retract and reset with fluid, aggressive speed, shaving critical seconds off every single push.
The true test of any heavy-duty press lies within its internal circulatory system and skeletal framework. Operating at a staggering 23Mpa, the hydraulic system is driven by premium, internationally recognized oil pumps that deliver relentless, pulsation-free pressure. This translates to a quiet, confident hum on the factory floor, replacing the jarring mechanical noise of inferior setups and ensuring your facility operates with maximum stability.
Premium Oil Pumps: Utilizing top-tier, globally sourced hydraulic pumps ensures a continuous, high-volume flow of oil, preventing pressure drops that cause material stalling and surface defects.
40Cr Forged Steel Tension Columns: The massive Φ270mm tie rods are forged from 40Cr steel, offering exceptional tensile strength. They absorb the immense 1822T stretching forces effortlessly, preventing metal fatigue over decades of heavy use.
Extreme High-Pressure Stability: The 23Mpa operating pressure is managed by precision-machined valves that seal tightly, ensuring zero internal fluid bypass and maintaining absolute force against the aluminum billet.
Extended Component Lifespan: By utilizing wear-resistant electromechanical components, the system drastically reduces friction and heat generation, meaning fewer maintenance shutdowns and significantly lower replacement costs.
In modern manufacturing, raw power is virtually useless without pinpoint direction. This equipment employs a sophisticated two-stage control method, marrying a robust Programmable Logic Controller (PLC) with a crystal-clear, highly responsive touch screen interface. For procurement managers focused on the yield rate, this digital brain ensures that every millimeter of the 0~18mm/s extrusion speed is meticulously governed, virtually eliminating the creation of scrap material.
Stepless Speed Regulation: The 0~18mm/s variable speed control allows operators to dial in the exact velocity required for different alloy grades, ensuring perfect metal flow and preventing surface tearing.
Real-Time Data Visualization: The bright, tactile touch screen displays live pressure metrics and cycle times, empowering operators to make instant, data-driven adjustments without ever leaving their station.
Automated Consistency: Once the PLC is programmed with a specific die's recipe, it replicates the exact pressure and speed curve thousands of times, guaranteeing that the first profile matches the ten-thousandth perfectly.
Reduced Labor Dependency: The intuitive nature of the two-stage control system lowers the barrier to entry for operators, reducing training costs and minimizing the risk of expensive manual miscalculations.
Every second a machine spends idling is a fraction of profitability lost. This press is explicitly designed to accelerate your capital recovery through relentless, high-speed operation. The standout metric here is the astonishingly brief 8-second dead cycle. Combined with advanced forward extrusion technology, this machinery transforms sluggish production lines into highly agile, high-volume output centers capable of conquering massive orders under tight deadlines.
8-Second Dead Cycle: By minimizing the non-extrusion retraction and loading phase to just 8 seconds, the machine drastically increases the number of billets processed per shift, directly multiplying your daily output.
High-Yield Forward Extrusion: This direct method pushes the billet with maximum efficiency, ensuring optimal metal utilization and leaving minimal butt scrap inside the container.
Rapid Order Fulfillment: The sheer speed and reliability of the press allow facility managers to confidently accept large-scale, time-sensitive contracts without fearing mechanical bottlenecks.
Accelerated Investment Recovery: The combination of low scrap rates, high daily throughput, and minimal downtime ensures that the initial capital expenditure is recouped at an unprecedented pace.
